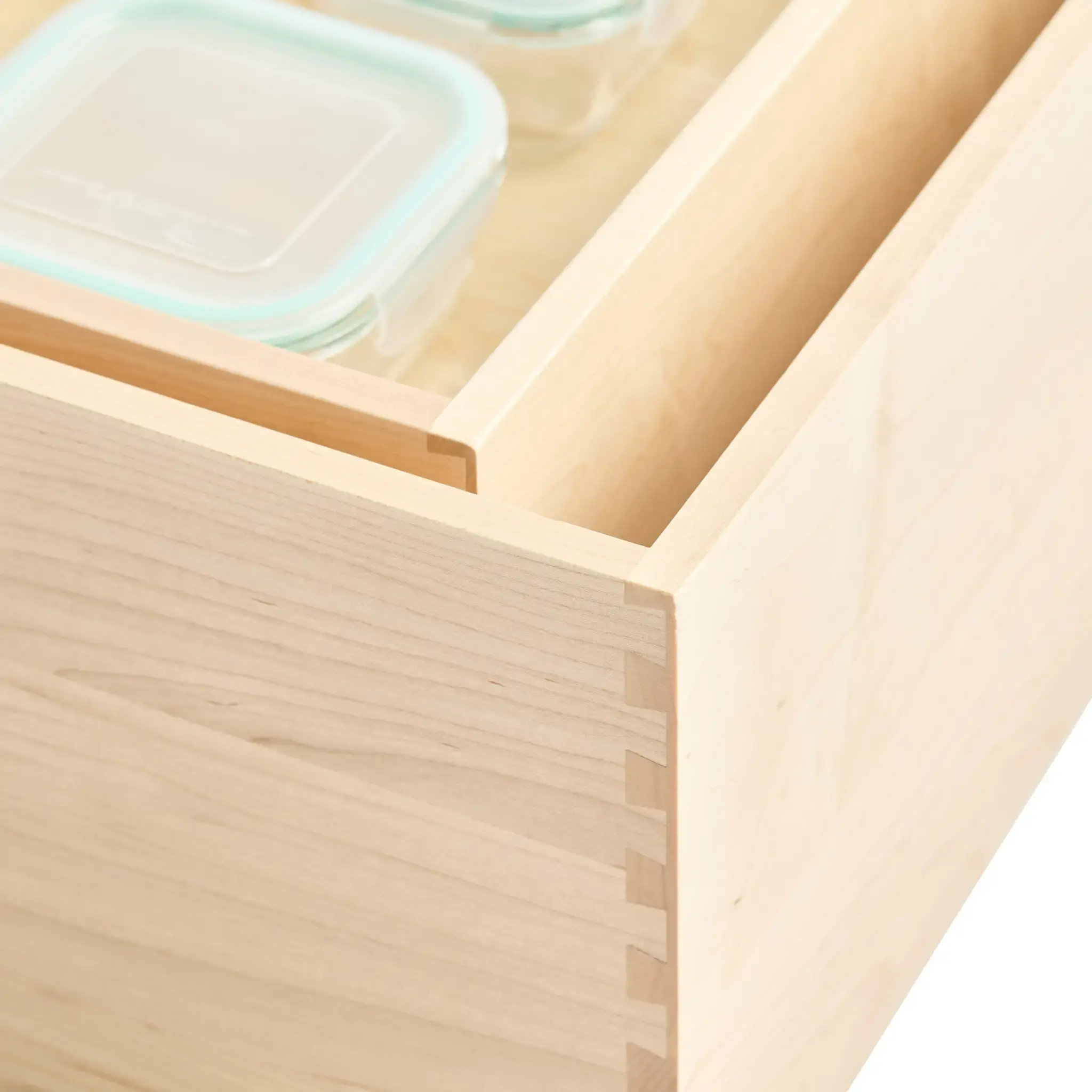

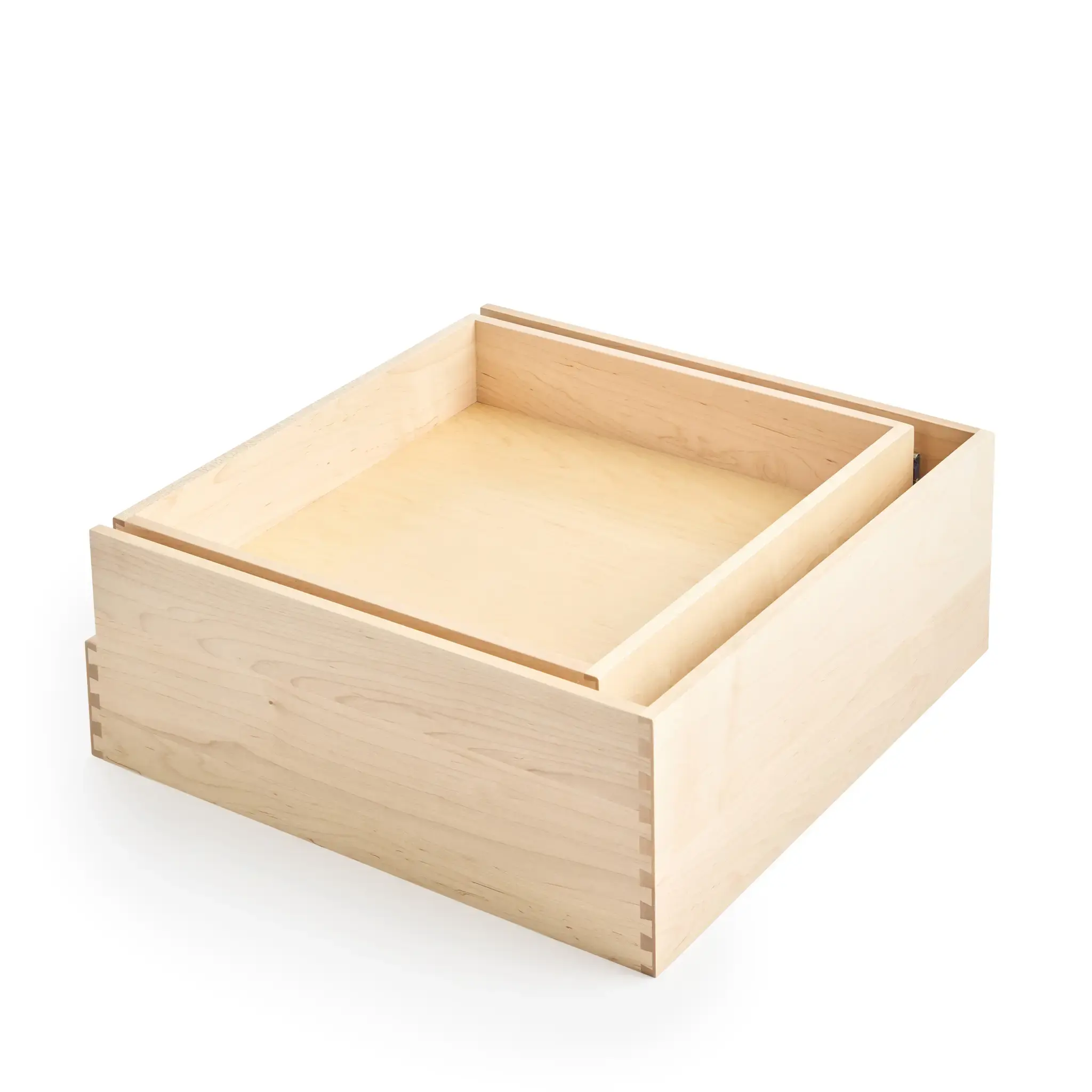

Double Drawer
A Double Drawer is a versatile, stylish storage solution that enhances kitchen functionality and aesthetics.
-
Product Description

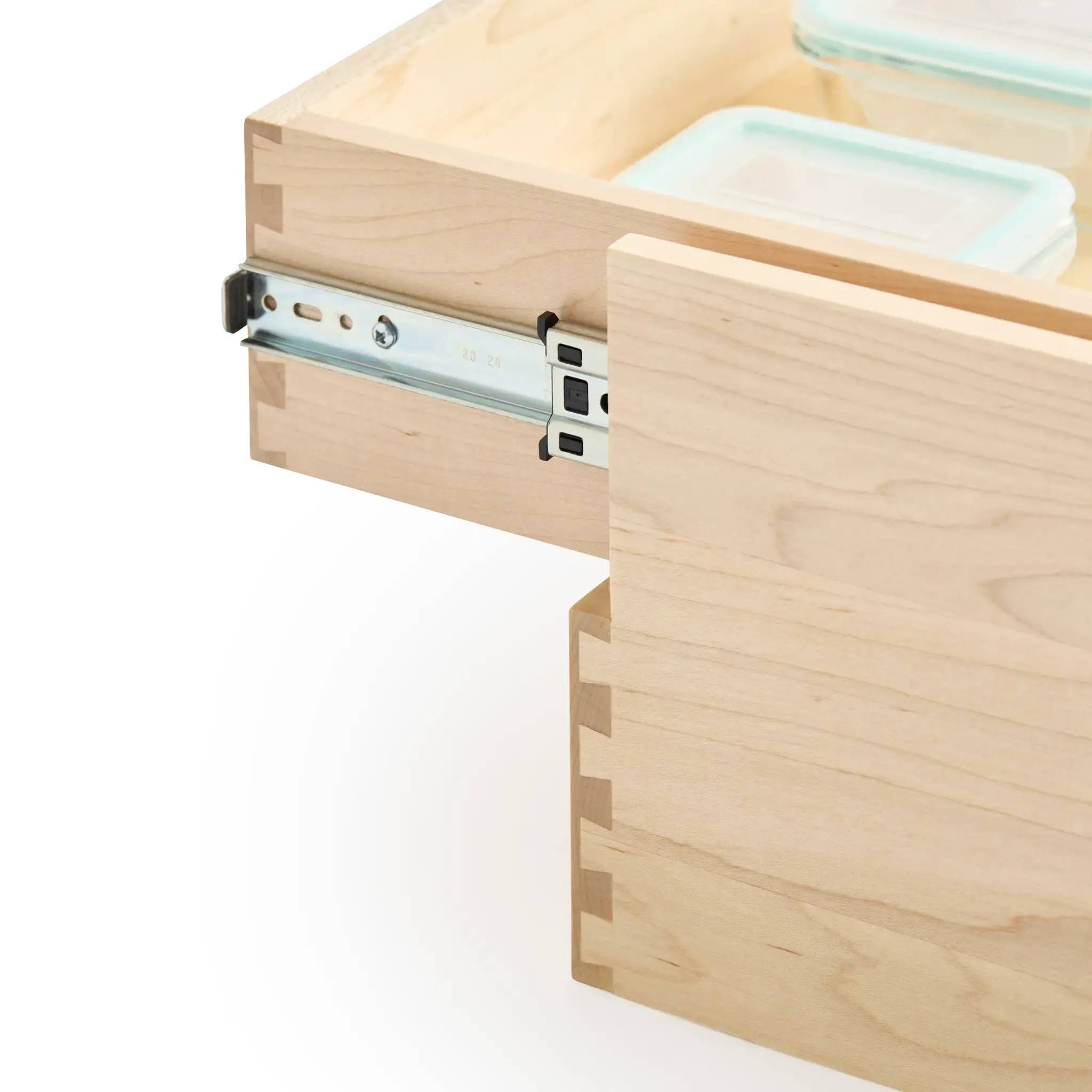

- The top drawer has sidemount slides.
- Minimum height for top drawer is 2"
- The bottom drawer can have undermount slides or sidemount slides.

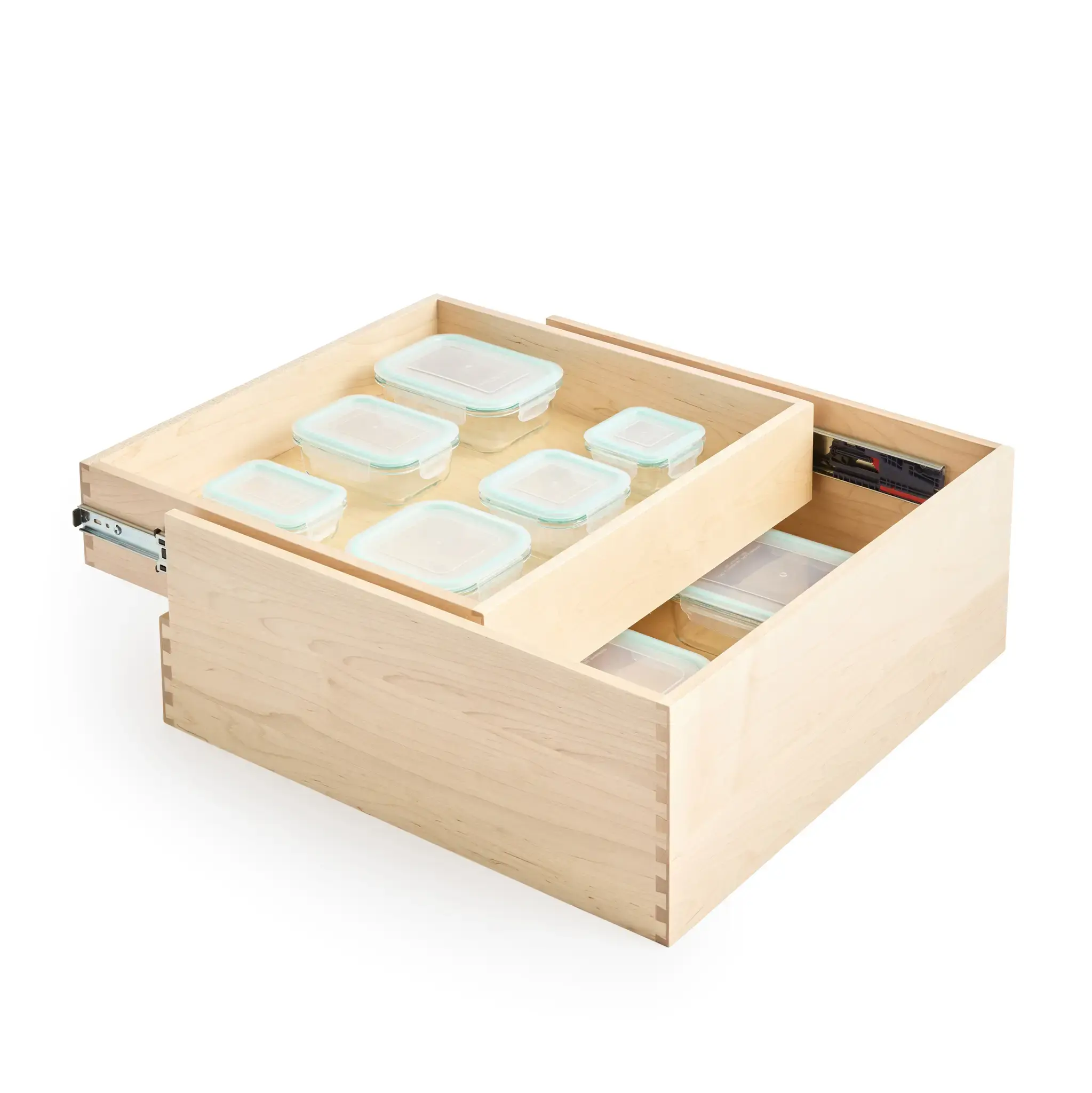

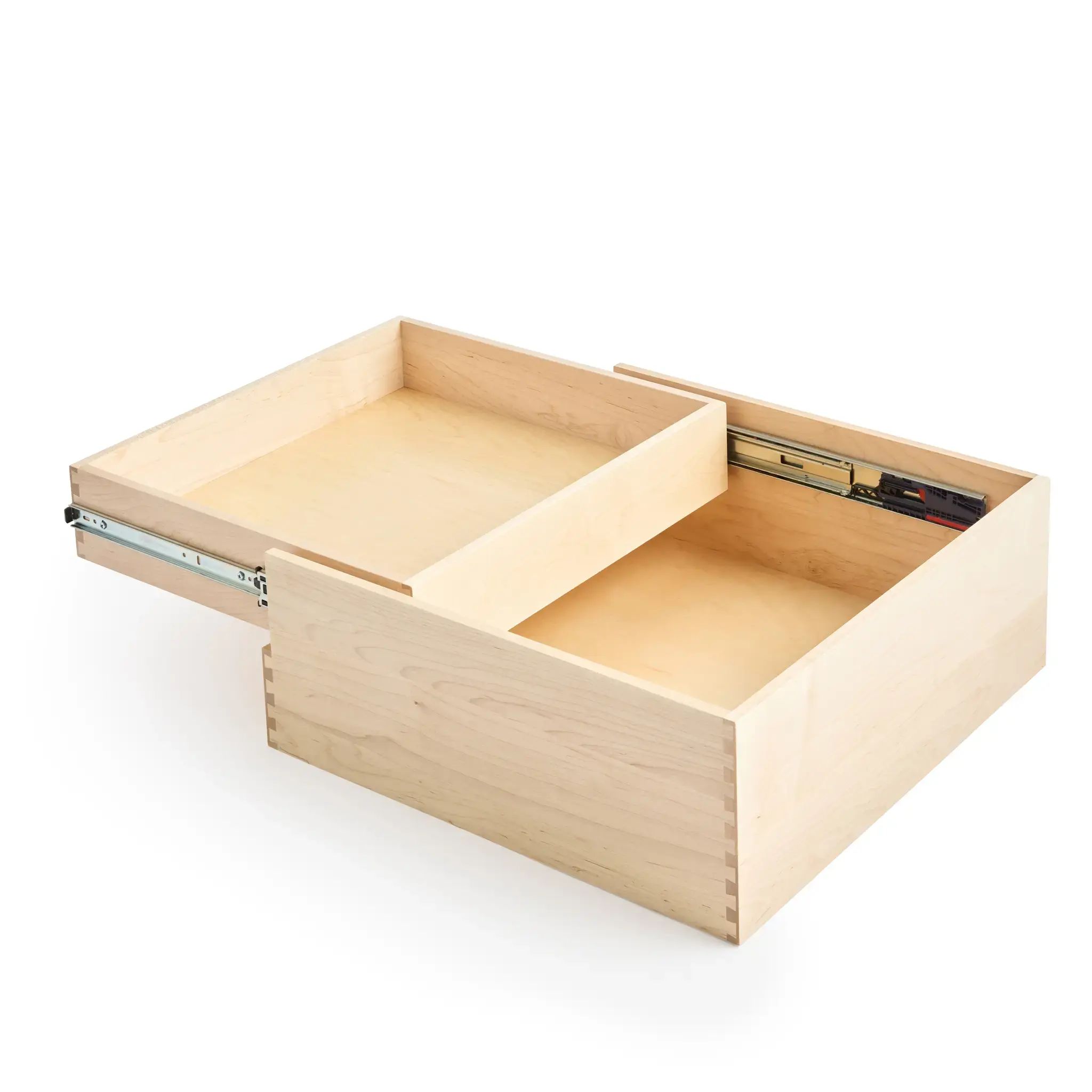

- The top drawer extends fully to allow access to the bottom drawer and includes a finished front.
- For insert requests in the top or bottom drawer, annotate in the notes section of your order.
-
Wood Types
- Soft Maple (1/2" and 5/8" thickness)
- Walnut (1/2" thickness)
- White Oak (1/2" thickness)
-
Sizes and Thickness Options
- Drawer Height: heights range from 3" to 12" in 1/16" increments.
- Drawer Width and Depth: width and depth greater from 4" to 72" in 1/16" increments.
- Soft maple is available in stock at 1/2" and 5/8" thickness.
- Walnut and White Oak are available in stock at 1/2" thickness.
- Additional wood thicknesses not held in stock are available at request, but may require longer than standard lead times.
-
Drawer Bottoms
- We offer 1/4" and 3/8" thickness bottoms in stock for maple and walnut.
- White Oak is available in stock for 3/8" thickness only.
- Our standard bottom groove placement is 1/2" from the bottom of the drawer box.
-
Assembly and Finish
-
Size Specifications and Tolerances
Product Description
Eagle Woodworking's Double Drawer combines versatile functionality with a sleek, built-in design, expertly crafted as one complete unit. Featuring a sliding top drawer for seamless access to the bottom compartment, this innovative storage solution offers ample space while enhancing the elegance and efficiency of any kitchen.
Ideal For
Maximized Storage — ideal for kitchens needing a smart, space-saving solution that provides easy access to multiple storage compartments while maintaining a clean, sophisticated appearance.
Default Specs
Top drawer is installed so that is slides out of the way when the bottom drawer needs to be accessed.
Available Wood Types
Always In Stock
Requests for wood types and thicknesses not listed above are available but may require longer than standard lead times.
Other Wood Types
Sizes and Thickness Options
Dovetail Drawer Box Dimensions
Wood Thickness Options
Drawer Bottoms
Assembly and Finish
Drawer Box Assembly
Standard dovetail drawers are made fully assembled. Unassembled dovetail drawers are available upon request.
Drawer Box Sanding
After assembly, drawer sides are run through a side sanding belt, followed by two rounds of top sanding by hand to create a flat, flush top, and a final edge break post-finish.
Drawer Box Finish
After drawer box assembly and initial prep sanding, we apply two coats of a water-based, clear lacquer by hand to ensure a consistent and smooth finish.
Size Specifications and Tolerances
Eagle Woodworking manufactures all wood products to the nearest 1/16" or 1.6mm, allowing for a tolerance of +/-1/32" or +/-0.8mm.
Product Description
Eagle Woodworking's Double Drawer combines versatile functionality with a sleek, built-in design, expertly crafted as one complete unit. Featuring a sliding top drawer for seamless access to the bottom compartment, this innovative storage solution offers ample space while enhancing the elegance and efficiency of any kitchen.
Ideal For
Maximized Storage — ideal for kitchens needing a smart, space-saving solution that provides easy access to multiple storage compartments while maintaining a clean, sophisticated appearance.
Default Specs
Top drawer is installed so that is slides out of the way when the bottom drawer needs to be accessed.
- The top drawer has sidemount slides.
- Minimum height for top drawer is 2"
- The bottom drawer can have undermount slides or sidemount slides.
- The top drawer extends fully to allow access to the bottom drawer and includes a finished front.
- For insert requests in the top or bottom drawer, annotate in the notes section of your order.
Available Wood Types
Always In Stock
- Soft Maple (1/2" and 5/8" thickness)
- Walnut (1/2" thickness)
- White Oak (1/2" thickness)
Requests for wood types and thicknesses not listed above are available but may require longer than standard lead times.
Other Wood Types
Sizes and Thickness Options
Dovetail Drawer Box Dimensions
- Drawer Height: heights range from 3" to 12" in 1/16" increments.
- Drawer Width and Depth: width and depth greater from 4" to 72" in 1/16" increments.
Wood Thickness Options
- Soft maple is available in stock at 1/2" and 5/8" thickness.
- Walnut and White Oak are available in stock at 1/2" thickness.
- Additional wood thicknesses not held in stock are available at request, but may require longer than standard lead times.
Drawer Bottoms
- We offer 1/4" and 3/8" thickness bottoms in stock for maple and walnut.
- White Oak is available in stock for 3/8" thickness only.
- Our standard bottom groove placement is 1/2" from the bottom of the drawer box.
Assembly and Finish
Drawer Box Assembly
Standard dovetail drawers are made fully assembled. Unassembled dovetail drawers are available upon request.
Drawer Box Sanding
After assembly, drawer sides are run through a side sanding belt, followed by two rounds of top sanding by hand to create a flat, flush top, and a final edge break post-finish.
Drawer Box Finish
After drawer box assembly and initial prep sanding, we apply two coats of a water-based, clear lacquer by hand to ensure a consistent and smooth finish.
Size Specifications and Tolerances
Eagle Woodworking manufactures all wood products to the nearest 1/16" or 1.6mm, allowing for a tolerance of +/-1/32" or +/-0.8mm.
Understand the Double Drawer
See how to instantly increase storage space with our custom Double Drawer configuration.
Double Drawer FAQ
What is the typical lead time?
Our standard lead time for dovetail drawers and drawer inserts is 1-2 weeks.
What makes the Double Drawer different from other drawer options?
The Double Drawer is designed with a sliding top drawer that moves out of the way for full access to the bottom compartment. With options for sidemount or undermount slides and the ability to include custom inserts, this versatile design ensures efficient use of space while offering a refined, built-in look tailored to your needs.
What wood types are available for Double Drawer?
All our custom inserts are available in our standard wood types of soft maple, white oak and walnut. Requests for other wood types can be accommodated but may require longer than normal lead times.
How do I measure for Double Drawer?
No special measurements are required. Use the standard measurement instructions to determine your bottom drawer dimensions.
Eagle Woodworking will build the top drawer directly into the bottom drawer with the appropriate deductions.
Can I have custom inserts or dividers inside the top or bottom drawer of a Double Drawer?
Yes, any other custom insert options are able to be built into the top or bottom drawer.
Our order form does not allow you to select both drawer options on one line, so you must select Drawer Option G, then annotate in the notes section which insert option you would like to add.
Our standard drawer divider thickness is 3/8".
What is the minimum height for a Double Drawer?
The minimum height for the bottom drawer in a double drawer is 4". With a 4" bottom drawer, the top drawer can be a max height of 2".
In order to have a 4" height top drawer, the bottom drawer should a be a minimum 6" in height.
We recommend the height for the bottom drawer to be 8" to provide adequate drawer space below the top drawer.
What is the minimum width for a Double Drawer?
We recommend the bottom drawer width be no smaller than 10".
The top drawer will be 1-1/16" smaller in width than the bottom drawer to accommodate for the slides.
How to access full FAQ list?
For our full list of frequently asked questions, visit our knowledge base.
How to Order Double Drawers
See how our process works from measuring to delivery to ensure your drawer order experience is as seamless as possible.
- Measure
- Request a Quote
- Confirm Order
- Track Order
- Delivery
Measure
Before submitting your quote or order request, you must first determine the appropriate measurements.
Our drawer order dimensions are based on the measurements for the actual drawers, not the cabinet openings.
To determine drawer dimensions, deductions from the cabinet opening are required based on the drawer thickness and hardware pairing.
Request a Quote
Visit our Drawer Order page to fill out the quote and order form. Enter your details and drawer box information.
New customers will receive a quote first, regardless of selecting 'order'.
Select Drawer Option G to add a Double Drawer to your drawer order.
Confirm Order
Quotes are delivered via email, where you may approve and convert to an order by clicking the ‘Approve Quote’ button within the email.
Once approved, new customers will be prompted to enter their payment information directly into our secure payment processor.
Once an order is confirmed by Eagle Woodworking, you will receive an Order Acknowledgement via email.
Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Delivery
Once your order is complete, Eagle Woodworking will package your drawers for delivery, taking extra precautions to ensure nothing is damaged during shipping. We offer an internal Eagle Delivery service or customer pick-up for local customers.
For customers outside of our internal delivery area, we will ship via small parcel or pallet, whichever is cheaper for the customer.
Measure
Before submitting your quote or order request, you must first determine the appropriate measurements.
Our drawer order dimensions are based on the measurements for the actual drawers, not the cabinet openings.
To determine drawer dimensions, deductions from the cabinet opening are required based on the drawer thickness and hardware pairing.
Request a Quote
Visit our Drawer Order page to fill out the quote and order form. Enter your details and drawer box information.
New customers will receive a quote first, regardless of selecting 'order'.
Select Drawer Option G to add a Double Drawer to your drawer order.
Confirm Order
Quotes are delivered via email, where you may approve and convert to an order by clicking the ‘Approve Quote’ button within the email.
Once approved, new customers will be prompted to enter their payment information directly into our secure payment processor.
Once an order is confirmed by Eagle Woodworking, you will receive an Order Acknowledgement via email.
Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Delivery
Once your order is complete, Eagle Woodworking will package your drawers for delivery, taking extra precautions to ensure nothing is damaged during shipping. We offer an internal Eagle Delivery service or customer pick-up for local customers.
For customers outside of our internal delivery area, we will ship via small parcel or pallet, whichever is cheaper for the customer.
Ready for your Double Drawers?
You can order Double Drawers through our online form. Simply put in your information, add any necessary details — like a job number —, select your delivery option, and then choose specifics like wood species and thickness. If it sounds simple, that’s because it is.
