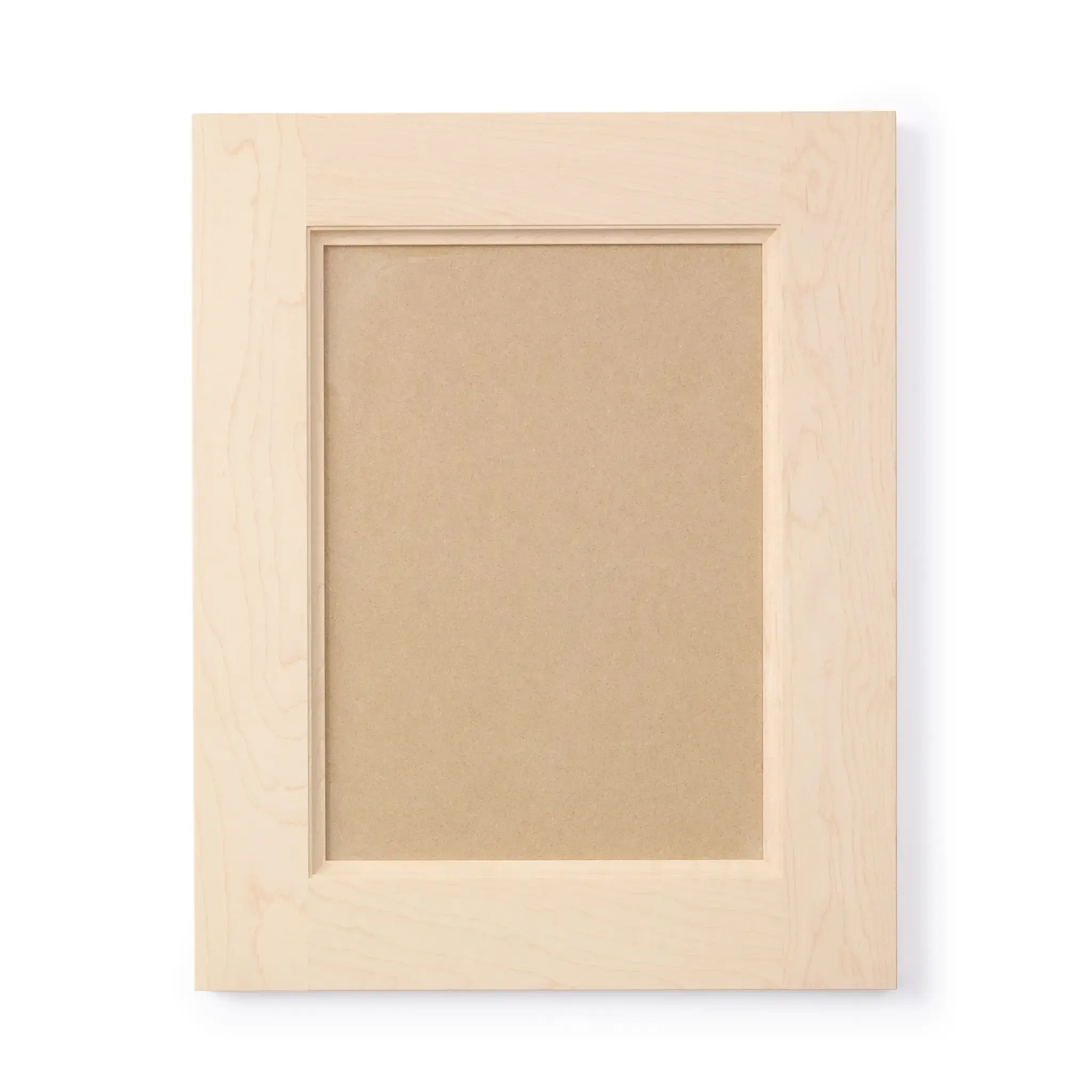

Portland Cabinet Door
The Portland, with its cozy sophistication, is perfect for adding a welcoming touch to homes, inspired by the city's lively arts scene and maritime spirit.
-
Product Description
- Door Thickness: 3/4"
- Rail and Stile Width*: 2-1/4"

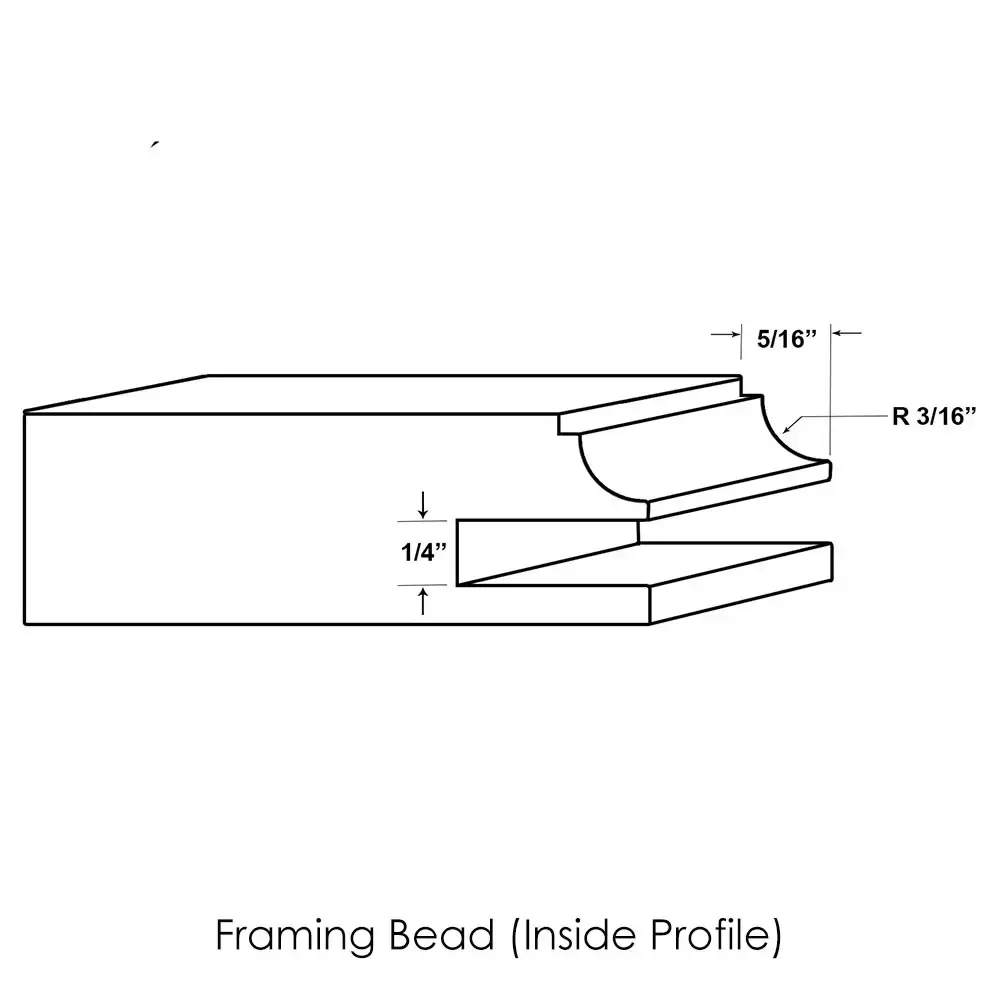

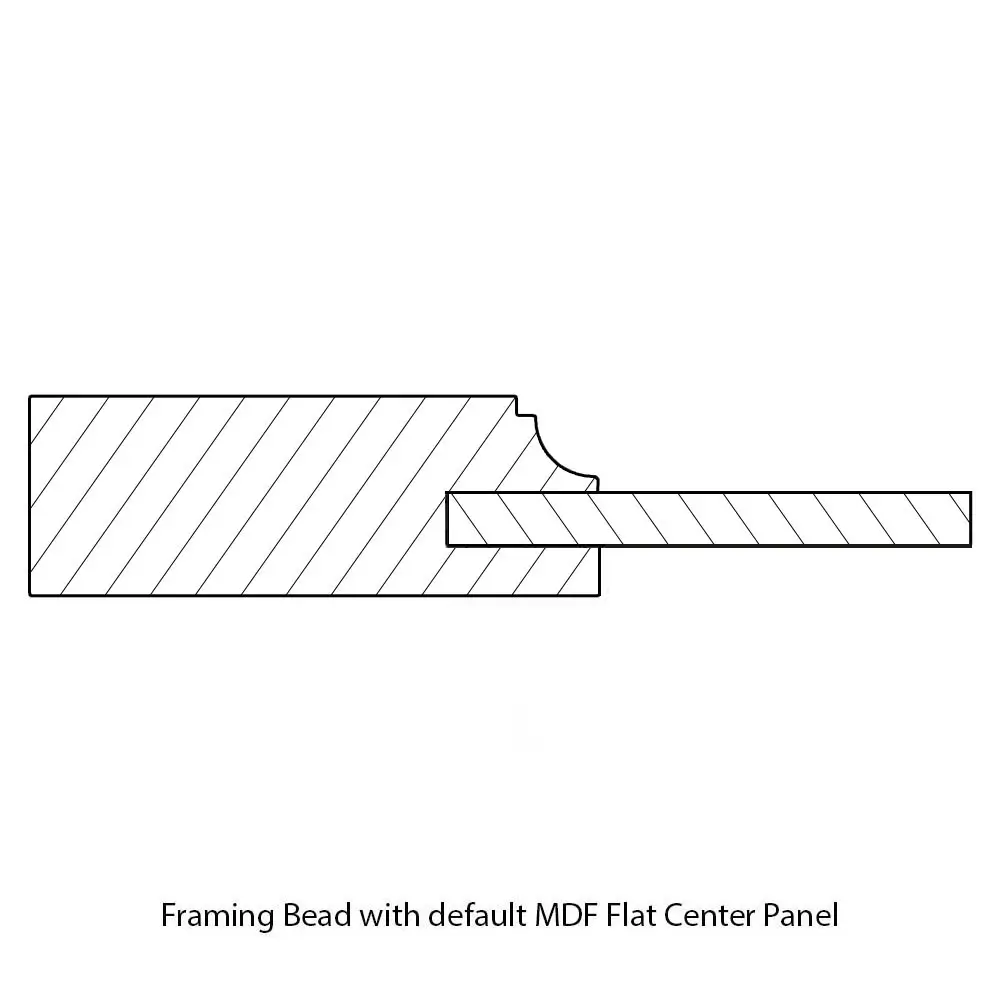

- Framing Bead Style: Portland (5pc - I)

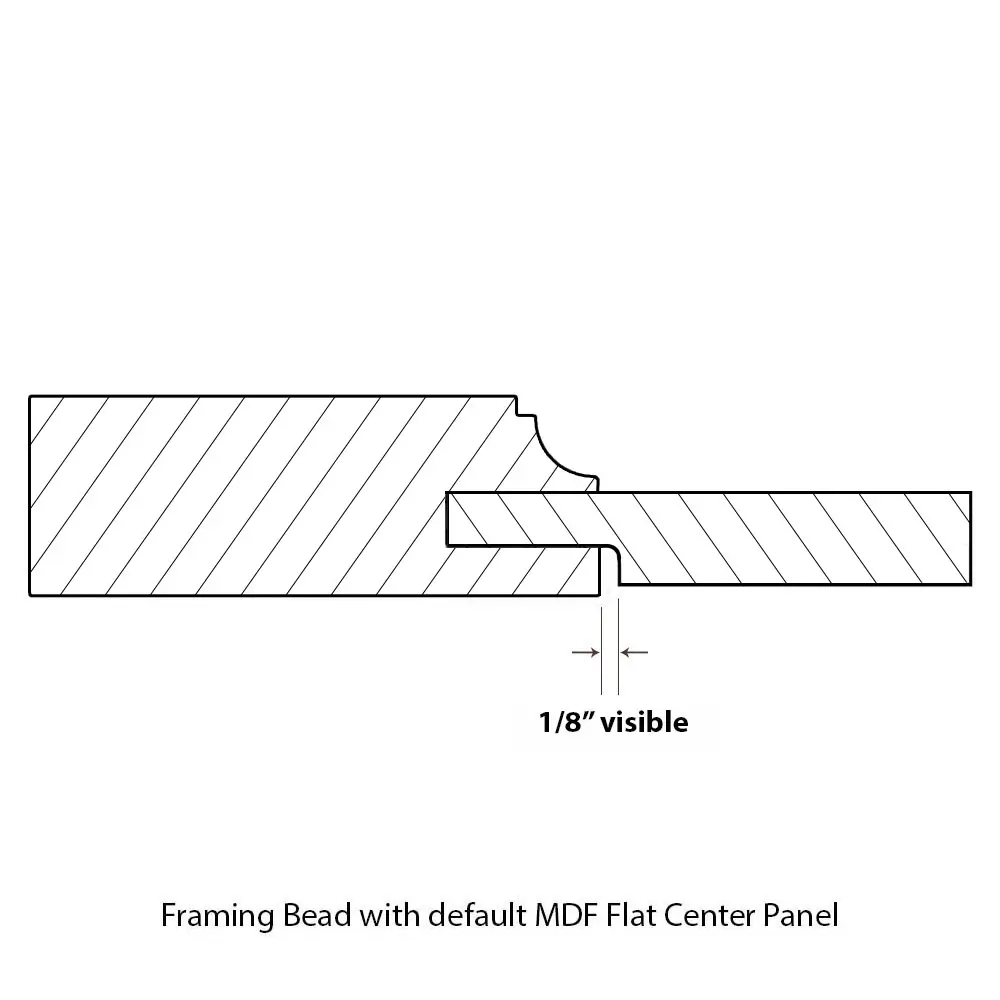

- Center Panel Style: Flat front with a 1/8" back reveal (MDF-01)
- Outside Edges: Hand broken / eased top edge (E-01)
-
Wood Types
- Maple - paint grade (default)
- Maple
- White Oak
- Walnut
- Red Oak
- Cherry
-
Hinge Boring Options
- Standard hinge boring is offset 3” from the top or bottom of the door.
- Option for a 3mm (1/8") or 5mm tab distance.
- Set up for screw-in or press-in hinges.
- We offer multiple cabinet door hinge options for purchase with doors.
- Select which cabinet door hinges you would like with your order, and we will determine all the appropriate quantities based on your order specifications.
-
Finish Options
- Unfinished (default)
- Prime - single coat
- Prime - double coat
-
Size Specifications and Tolerances
- Single panel doors up to 26" wide and 48" high: 1/8" tolerance.
- Multi-panel doors up to 26" wide and 48" to 65" high: 1/4" tolerance.
- Multi-panel doors up to 26" wide and 65" to 84" high: 5/16" tolerance.
- Single panel, single opening frame-only, and mullion doors exceeding 26" wide and 48" high are not warranted (mullion lites are excluded from the opening count).
- Doors that are wider than 26" or taller than 84" will not be warrantied.
Product Description

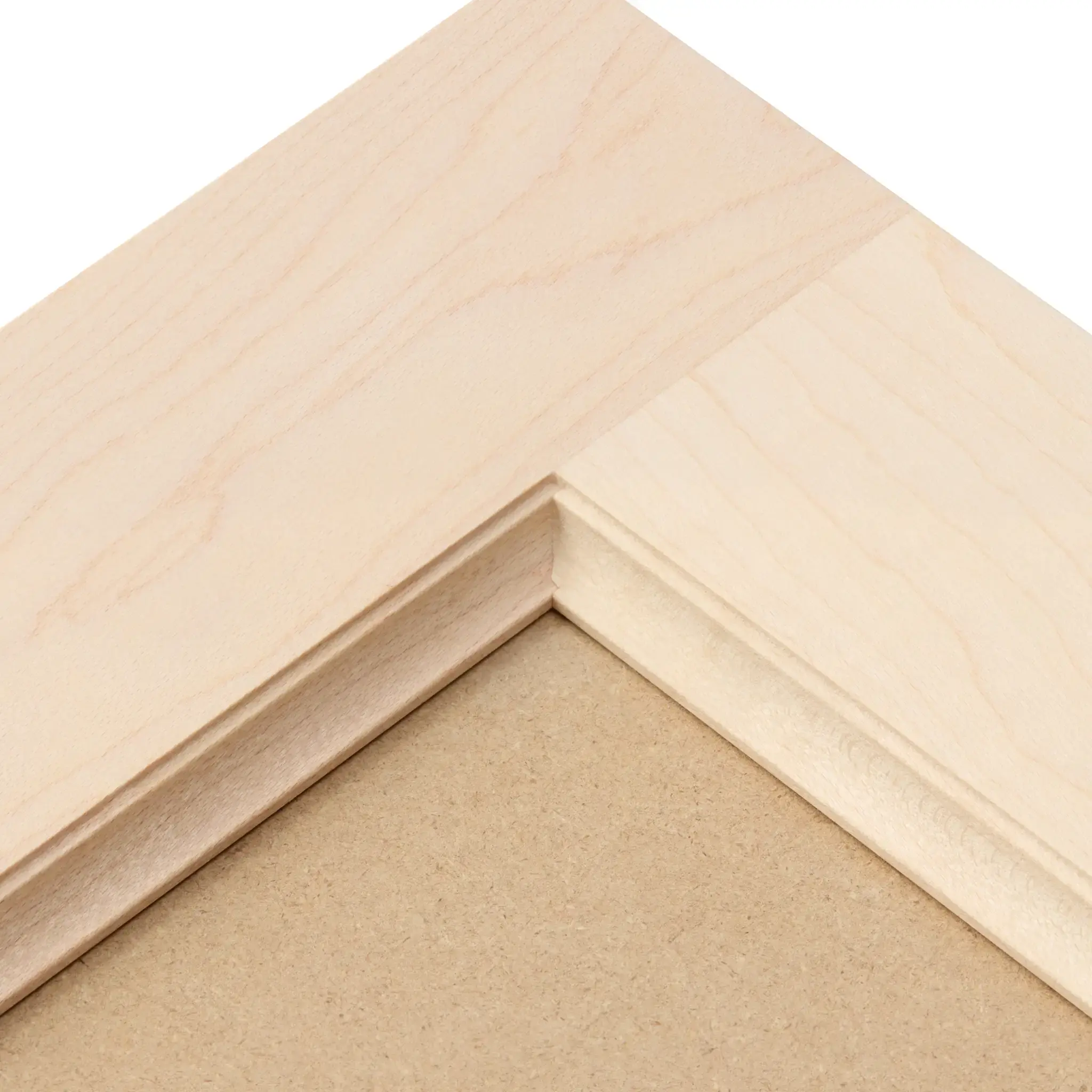

The Portland cabinet door features a bold cove inside framing bead, adding a striking and dramatic curved detail to its 5-piece wood construction, perfect for enhancing kitchens with a distinct and elegant character.
Ideal For
Distinctive Elegance — ideal for kitchens that aim to make a bold statement while balancing timeless and transitional aesthetics with a uniquely refined design.
Default Specs
*Rail and Stile width is inclusive of framing bead profile.
Available Wood Types
Always In Stock at 3/4" Thickness
Requests for wood types and thicknesses not listed above are available but may require longer than standard lead times.
Other Wood Types
Hinge Boring
Pre-drilled hinge boring is available for add-on when requesting a quote.
View Full Hinge Boring Options
Cabinet Door Hinges
Finish Options
All custom cabinet doors and drawer fronts are sanded prior to finish unless requested by the customer. Sanding is not applied after a single prime coat but is applied between coats and after on a prime double coat.
Doors Size Specifications and Tolerances
Eagle Woodworking manufactures all wood products to the nearest 1/16" or 1.6mm, allowing for a tolerance of +/-1/32" or +/-0.8mm.
Doors over 50” tall will include a center rail unless specified by customer. No warranty is provided for doors greater than 50” tall without a center rail.
There is no maximum height or width for wood doors.
The allowable tolerances for bow, warp, or twist for 5-Piece doors are as follows:
Product Description
The Portland cabinet door features a bold cove inside framing bead, adding a striking and dramatic curved detail to its 5-piece wood construction, perfect for enhancing kitchens with a distinct and elegant character.
Ideal For
Distinctive Elegance — ideal for kitchens that aim to make a bold statement while balancing timeless and transitional aesthetics with a uniquely refined design.
Default Specs
- Door Thickness: 3/4"
- Rail and Stile Width*: 2-1/4"
- Framing Bead Style: Portland (5pc - I)
- Center Panel Style: Flat front with a 1/8" back reveal (MDF-01)
- Outside Edges: Hand broken / eased top edge (E-01)
*Rail and Stile width is inclusive of framing bead profile.
Available Wood Types
Always In Stock at 3/4" Thickness
- Maple - paint grade (default)
- Maple
- White Oak
Requests for wood types and thicknesses not listed above are available but may require longer than standard lead times.
Other Wood Types
- Walnut
- Red Oak
- Cherry
Hinge Boring
Pre-drilled hinge boring is available for add-on when requesting a quote.
- Standard hinge boring is offset 3” from the top or bottom of the door.
- Option for a 3mm (1/8") or 5mm tab distance.
- Set up for screw-in or press-in hinges.
View Full Hinge Boring Options
Cabinet Door Hinges
- We offer multiple cabinet door hinge options for purchase with doors.
- Select which cabinet door hinges you would like with your order, and we will determine all the appropriate quantities based on your order specifications.
Finish Options
- Unfinished (default)
- Prime - single coat
- Prime - double coat
All custom cabinet doors and drawer fronts are sanded prior to finish unless requested by the customer. Sanding is not applied after a single prime coat but is applied between coats and after on a prime double coat.
Doors Size Specifications and Tolerances
Eagle Woodworking manufactures all wood products to the nearest 1/16" or 1.6mm, allowing for a tolerance of +/-1/32" or +/-0.8mm.
Doors over 50” tall will include a center rail unless specified by customer. No warranty is provided for doors greater than 50” tall without a center rail.
There is no maximum height or width for wood doors.
The allowable tolerances for bow, warp, or twist for 5-Piece doors are as follows:
- Single panel doors up to 26" wide and 48" high: 1/8" tolerance.
- Multi-panel doors up to 26" wide and 48" to 65" high: 1/4" tolerance.
- Multi-panel doors up to 26" wide and 65" to 84" high: 5/16" tolerance.
- Single panel, single opening frame-only, and mullion doors exceeding 26" wide and 48" high are not warranted (mullion lites are excluded from the opening count).
- Doors that are wider than 26" or taller than 84" will not be warrantied.
Portland Cabinet Doors FAQ
What is the typical lead time?
Our standard lead time for cabinet doors is 2-3 weeks.
What makes the Portland different from other cabinet door styles?
The Portland cabinet door stands out with its bold cove inside framing bead, featuring a more pronounced curve that sets it apart from other styles with simpler or angular profiles, creating a dramatic yet timeless look.
What if I want something more custom than the default style configuration?
On our Doors Quote Form, you can customize the following options in Step 6:
- Door Thickness
- Rails and Stile Width
- Framing Bead Style
- Center Panel Style
- Outside Edge Style
You may also include a note on each line of your order form, annotating any custom requests.
For any non-standard requests, please email us at doors@eagledovetaildrawers.com or give us a call directly at 978-681-6194.
How to access full FAQ list?
For our full list of frequently asked questions, visit our knowledge base.
How to Order Portland Cabinet Doors
See how our process works from measuring to delivery to ensure your cabinet doors order experience is as seamless as possible.
- Measure
- Request a Quote
- Confirm Order
- Track Order
- Delivery
Measure
Before submitting your quote or order request, you must first determine the appropriate measurements.
Our doors and drawer front order dimensions are based on the measurements for the actual doors, not the cabinet openings.
Request a Quote
Visit our Doors Order page to fill out the quote and order form. Enter your details and door information.
New customers will receive a quote first, regardless of selecting 'order'.
Select Construction Type = 'Wood Door: 5-Piece' & Door Style = 'Portland - 5pc' to create your door order.
Confirm Order
Quotes are delivered via email, where you may approve and convert to an order by clicking the ‘Approve Quote’ button within the email.
Once approved, new customers will be prompted to enter their payment information directly into our secure payment processor.
Once an order is confirmed by Eagle Woodworking, you will receive an Order Acknowledgement via email.
Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Delivery
Once your order is complete, Eagle Woodworking will package your drawers for delivery, taking extra precautions to ensure nothing is damaged during shipping. We offer an internal Eagle Delivery service or customer pick-up for local customers.
For customers outside of our internal delivery area, we will ship via small parcel or pallet, whichever is cheaper for the customer.
Measure
Before submitting your quote or order request, you must first determine the appropriate measurements.
Our doors and drawer front order dimensions are based on the measurements for the actual doors, not the cabinet openings.
Request a Quote
Visit our Doors Order page to fill out the quote and order form. Enter your details and door information.
New customers will receive a quote first, regardless of selecting 'order'.
Select Construction Type = 'Wood Door: 5-Piece' & Door Style = 'Portland - 5pc' to create your door order.
Confirm Order
Quotes are delivered via email, where you may approve and convert to an order by clicking the ‘Approve Quote’ button within the email.
Once approved, new customers will be prompted to enter their payment information directly into our secure payment processor.
Once an order is confirmed by Eagle Woodworking, you will receive an Order Acknowledgement via email.
Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Delivery
Once your order is complete, Eagle Woodworking will package your drawers for delivery, taking extra precautions to ensure nothing is damaged during shipping. We offer an internal Eagle Delivery service or customer pick-up for local customers.
For customers outside of our internal delivery area, we will ship via small parcel or pallet, whichever is cheaper for the customer.
