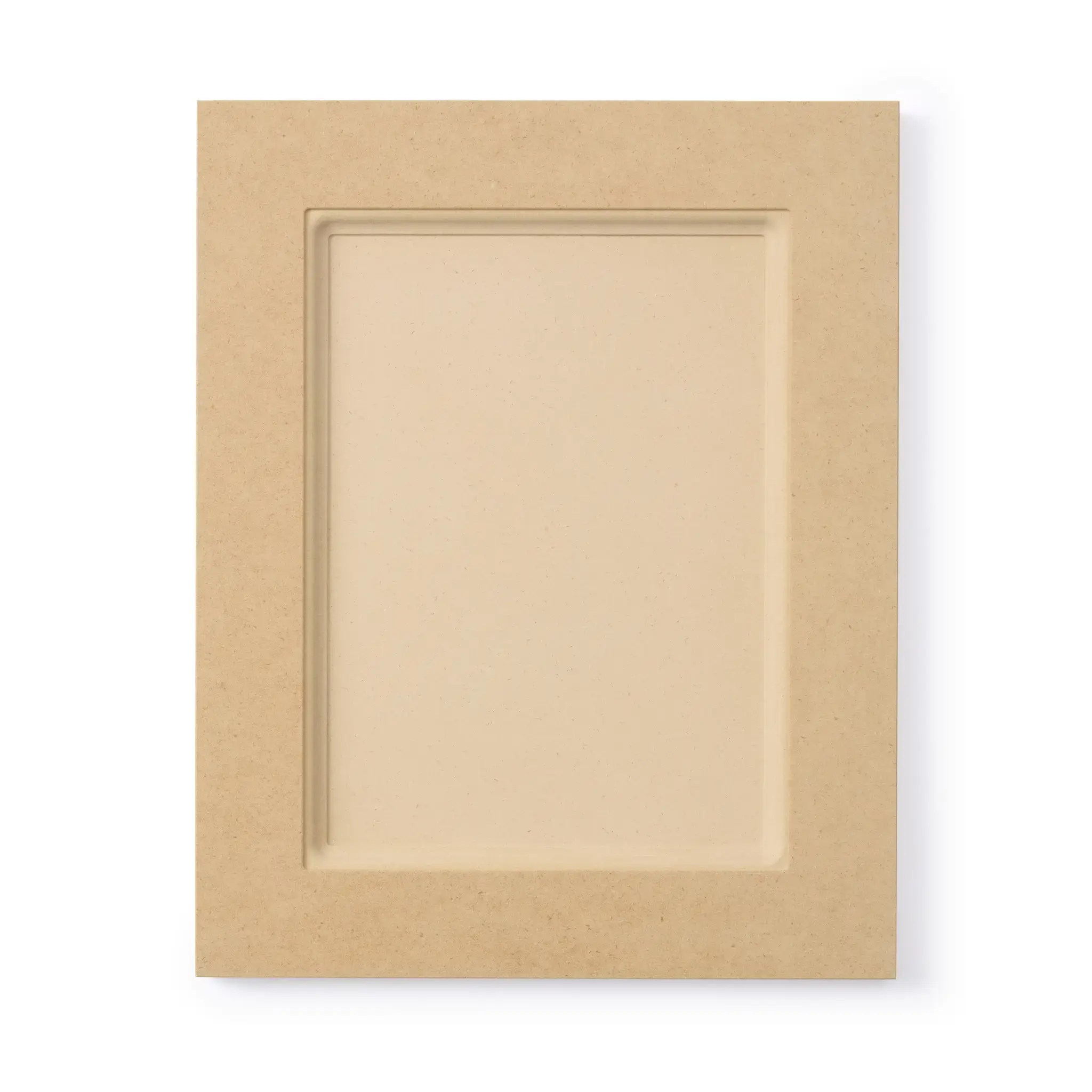

Madison Ogee Cabinet Door
Showcasing graceful curves and refined detailing, the Madison Ogee MDF cabinet door highlights its signature ogee bevel, blending classic elegance with a versatile, paint-ready design.
-
Product Description
- Door Thickness: 3/4"
- Rail and Stile Width*: 2-1/4"
- Framing Bead Style: Madison Ogee (1pc - G)
- Center Panel Style:
- 1pc MDF: No center panel, one solid MDF piece for entire door
- 2pc MDF: 3/8" flat panel (MDF-02)
- Outside Edges: Hand broken / eased top edge (E-01)
-
1-Piece vs 2-Piece MDF
-
Hinge Boring Options
- Standard hinge boring is offset 3” from the top or bottom of the door.
- Option for a 3mm (1/8") or 5mm tab distance.
- Set up for screw-in or press-in hinges.
- We offer multiple cabinet door hinge options for purchase with doors.
- Select which cabinet door hinges you would like with your order, and we will determine all the appropriate quantities based on your order specifications.
-
Finish Options
- Unfinished (default)
- Prime - single coat
- Prime - double coat
-
Size Specifications and Tolerances
Product Description
The Madison Ogee MDF cabinet door features an elegant ogee bevel, adding a touch of classic sophistication to its durable 1-piece or 2-piece MDF construction. This design seamlessly blends traditional charm with modern versatility, offering a smooth, paint-ready surface ideal for various interior styles.
Ideal For
Modern Sophistication — perfect for kitchens and living spaces seeking a refined design with a graceful profile, offering a versatile option that seamlessly blends timeless elegance with contemporary appeal.
Default Specs
*Rail and Stile width is inclusive of framing bead profile.
1-Piece vs 2-Piece MDF
MDF doors offer a more affordable option compared to wood doors, while also being more durable and better at accepting paint finishes.

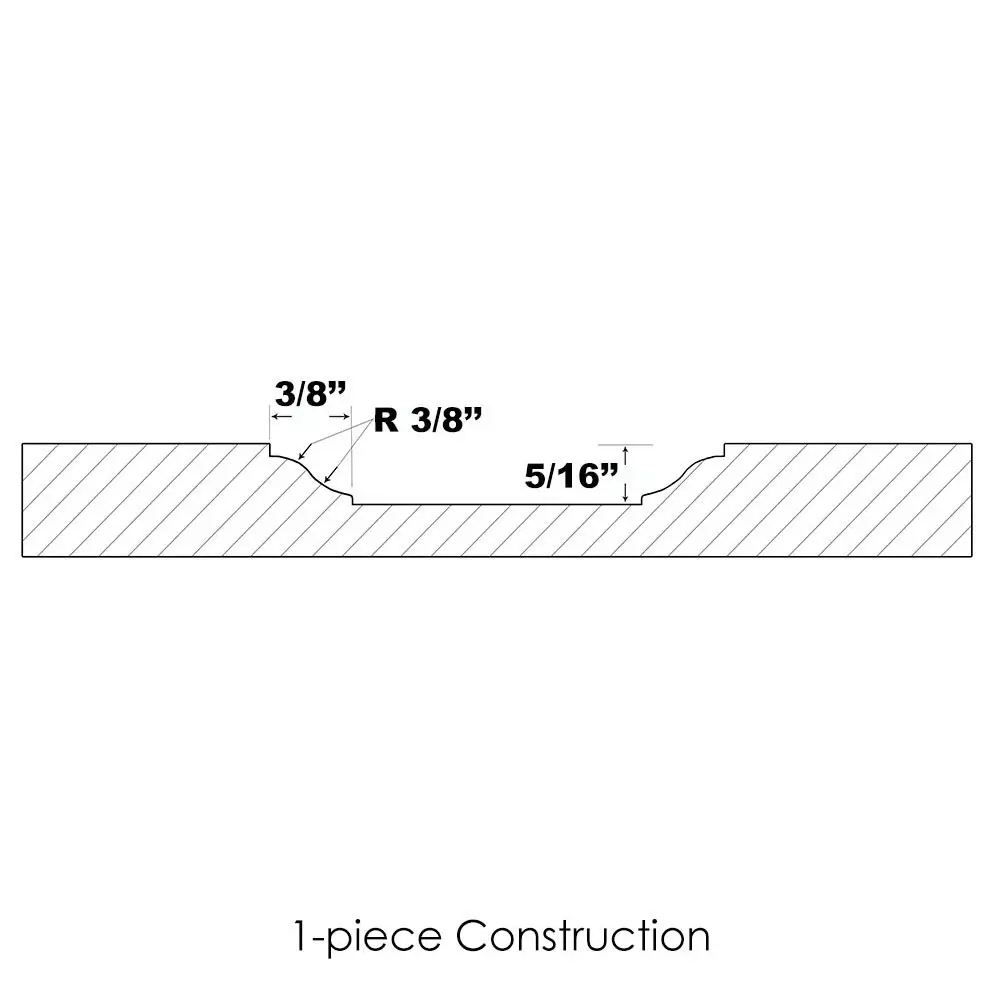

1-Piece MDF doors are constructed from one solid piece of MDF material. 1-Piece MDF doors are our most affordable doors available.

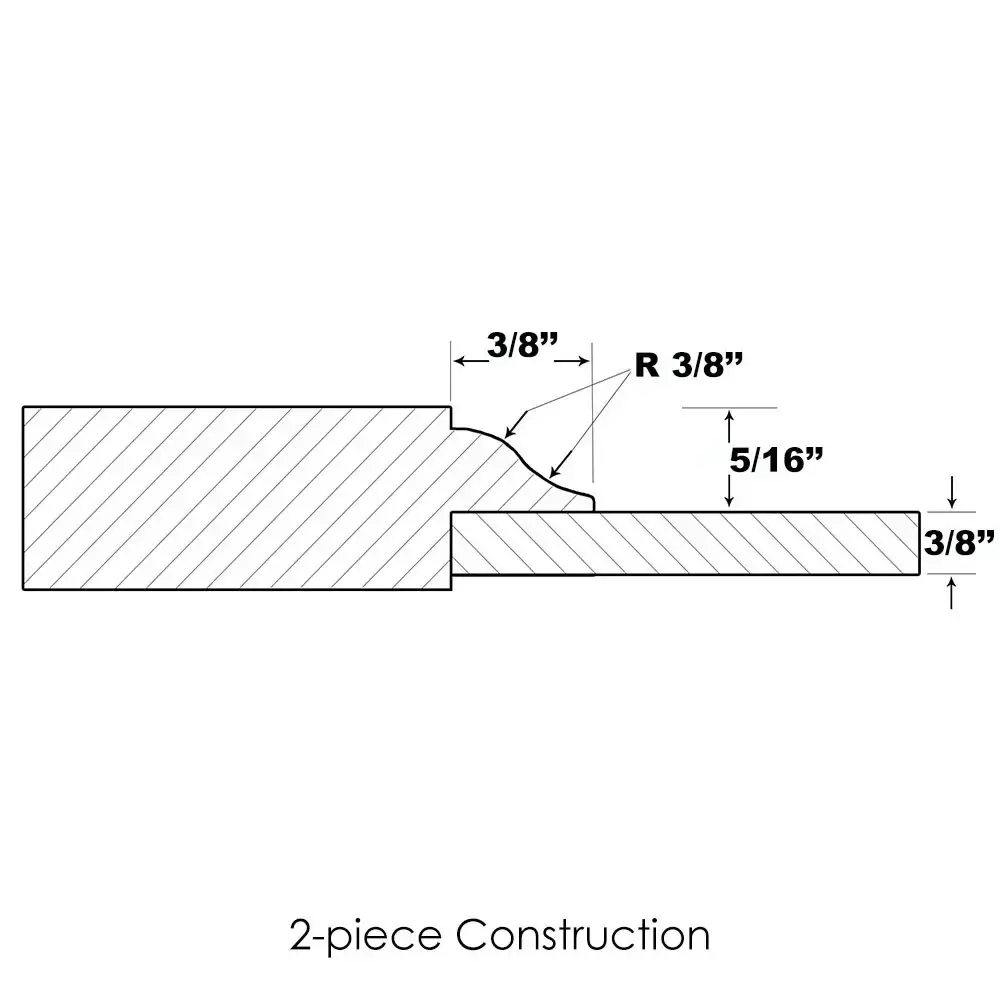

2-Piece MDF doors are constructed with two distinct pieces of MDF material, one for the frame and another for the center panel, which helps minimize the risk of warping.
All MDF doors are crafted from high-quality fiberboard, subject to a rigorous double refining process for unmatched durability, stability, and moisture resistance.
Hinge Boring
Pre-drilled hinge boring is available for add-on when requesting a quote.
View Full Hinge Boring Options
Cabinet Door Hinges
Finish Options
All custom cabinet doors and drawer fronts are sanded prior to finish unless requested by the customer. Sanding is not applied after a single prime coat but is applied between coats and after on a prime double coat.
Doors Size Specifications and Tolerances
Eagle Woodworking manufactures all wood products to the nearest 1/16" or 1.6mm, allowing for a tolerance of +/-1/32" or +/-0.8mm.
Doors over 50” tall will include a center rail unless specified by customer. No warranty is provided for doors greater than 50” tall without a center rail.
The maximum height or width for MDF doors is 96".
For allowable tolerances for bow, warp, and twisting, visit our full Specifications and Tolerances Guide.
Product Description
The Madison Ogee MDF cabinet door features an elegant ogee bevel, adding a touch of classic sophistication to its durable 1-piece or 2-piece MDF construction. This design seamlessly blends traditional charm with modern versatility, offering a smooth, paint-ready surface ideal for various interior styles.
Ideal For
Modern Sophistication — perfect for kitchens and living spaces seeking a refined design with a graceful profile, offering a versatile option that seamlessly blends timeless elegance with contemporary appeal.
Default Specs
- Door Thickness: 3/4"
- Rail and Stile Width*: 2-1/4"
- Framing Bead Style: Madison Ogee (1pc - G)
- Center Panel Style:
- 1pc MDF: No center panel, one solid MDF piece for entire door
- 2pc MDF: 3/8" flat panel (MDF-02)
- Outside Edges: Hand broken / eased top edge (E-01)
*Rail and Stile width is inclusive of framing bead profile.
1-Piece vs 2-Piece MDF
MDF doors offer a more affordable option compared to wood doors, while also being more durable and better at accepting paint finishes.
1-Piece MDF doors are constructed from one solid piece of MDF material. 1-Piece MDF doors are our most affordable doors available.
2-Piece MDF doors are constructed with two distinct pieces of MDF material, one for the frame and another for the center panel, which helps minimize the risk of warping.
All MDF doors are crafted from high-quality fiberboard, subject to a rigorous double refining process for unmatched durability, stability, and moisture resistance.
Hinge Boring
Pre-drilled hinge boring is available for add-on when requesting a quote.
- Standard hinge boring is offset 3” from the top or bottom of the door.
- Option for a 3mm (1/8") or 5mm tab distance.
- Set up for screw-in or press-in hinges.
View Full Hinge Boring Options
Cabinet Door Hinges
- We offer multiple cabinet door hinge options for purchase with doors.
- Select which cabinet door hinges you would like with your order, and we will determine all the appropriate quantities based on your order specifications.
Finish Options
- Unfinished (default)
- Prime - single coat
- Prime - double coat
All custom cabinet doors and drawer fronts are sanded prior to finish unless requested by the customer. Sanding is not applied after a single prime coat but is applied between coats and after on a prime double coat.
Doors Size Specifications and Tolerances
Eagle Woodworking manufactures all wood products to the nearest 1/16" or 1.6mm, allowing for a tolerance of +/-1/32" or +/-0.8mm.
Doors over 50” tall will include a center rail unless specified by customer. No warranty is provided for doors greater than 50” tall without a center rail.
The maximum height or width for MDF doors is 96".
For allowable tolerances for bow, warp, and twisting, visit our full Specifications and Tolerances Guide.
Madison Ogee Cabinet Doors FAQ
What is the typical lead time?
Our standard lead time for cabinet doors is 2-3 weeks.
What makes the Madison Ogee different from other cabinet door styles?
The Madison Ogee stands out with its distinctive ogee bevel and MDF material construction, introducing a graceful, S-shaped curve that sets it apart from other styles. This unique profile adds depth and elegance, making it an excellent choice for those aiming to enhance their cabinetry with a touch of classic sophistication.
What is the difference between 1-Piece and 2-Piece MDF?
1-Piece MDF doors are constructed from one solid piece of MDF material. 1-Piece MDF doors are the most affordable doors available.
2-Piece MDF doors are constructed with two distinct pieces of MDF material, one for the frame and another for the center panel, which helps minimize the risk of warping.
Is the MDF material moisture resistant?
Our MDF doors are crafted from materials subject to a rigorous double refining process that creates a durable, moisture resistant door.
What if I want something more custom than the default style configuration?
On our Doors Quote Form, you can customize the following options in Step 6:
- Door Thickness
- Rails and Stile Width
- Framing Bead Style
- Center Panel Style
- Outside Edge Style
You may also include a note on each line of your order form, annotating any custom requests.
For any non-standard requests, please email us at doors@eagledovetaildrawers.com or give us a call directly at 978-681-6194.
How to access full FAQ list?
For our full list of frequently asked questions, visit our knowledge base.
How to Order Madison Ogee Cabinet Doors
See how our process works from measuring to delivery to ensure your cabinet doors order experience is as seamless as possible.
- Measure
- Request a Quote
- Confirm Order
- Track Order
- Delivery
Measure
Before submitting your quote or order request, you must first determine the appropriate measurements.
Our doors and drawer front order dimensions are based on the measurements for the actual doors, not the cabinet openings.
Request a Quote
Visit our Doors Order page to fill out the quote and order form. Enter your details and door information.
New customers will receive a quote first, regardless of selecting 'order'.
Select Construction Type = 'MDF Door: 1-Piece' or 'MDF Door: 2-Piece' & Door Style = 'Madison Ogee' to create your door order.
Confirm Order
Quotes are delivered via email, where you may approve and convert to an order by clicking the ‘Approve Quote’ button within the email.
Once approved, new customers will be prompted to enter their payment information directly into our secure payment processor.
Once an order is confirmed by Eagle Woodworking, you will receive an Order Acknowledgement via email.
Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Delivery
Once your order is complete, Eagle Woodworking will package your drawers for delivery, taking extra precautions to ensure nothing is damaged during shipping. We offer an internal Eagle Delivery service or customer pick-up for local customers.
For customers outside of our internal delivery area, we will ship via small parcel or pallet, whichever is cheaper for the customer.
Measure
Before submitting your quote or order request, you must first determine the appropriate measurements.
Our doors and drawer front order dimensions are based on the measurements for the actual doors, not the cabinet openings.
Request a Quote
Visit our Doors Order page to fill out the quote and order form. Enter your details and door information.
New customers will receive a quote first, regardless of selecting 'order'.
Select Construction Type = 'MDF Door: 1-Piece' or 'MDF Door: 2-Piece' & Door Style = 'Madison Ogee' to create your door order.
Confirm Order
Quotes are delivered via email, where you may approve and convert to an order by clicking the ‘Approve Quote’ button within the email.
Once approved, new customers will be prompted to enter their payment information directly into our secure payment processor.
Once an order is confirmed by Eagle Woodworking, you will receive an Order Acknowledgement via email.
Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Delivery
Once your order is complete, Eagle Woodworking will package your drawers for delivery, taking extra precautions to ensure nothing is damaged during shipping. We offer an internal Eagle Delivery service or customer pick-up for local customers.
For customers outside of our internal delivery area, we will ship via small parcel or pallet, whichever is cheaper for the customer.
Ready for your Madison Ogee Cabinet Doors?
You can order custom cabinet doors through our online form. Simply put in your information, add any necessary details — like a job number —, select your delivery option, and then choose specifics like wood species and thickness. If it sounds simple, that’s because it is.
