Blum Tandem plus BLUMOTION Soft Close Drawer Slides Kit
Experience the perfect blend of precision engineering and quiet functionality with the Blum Tandem plus BLUMOTION Soft Close Drawer Slides.

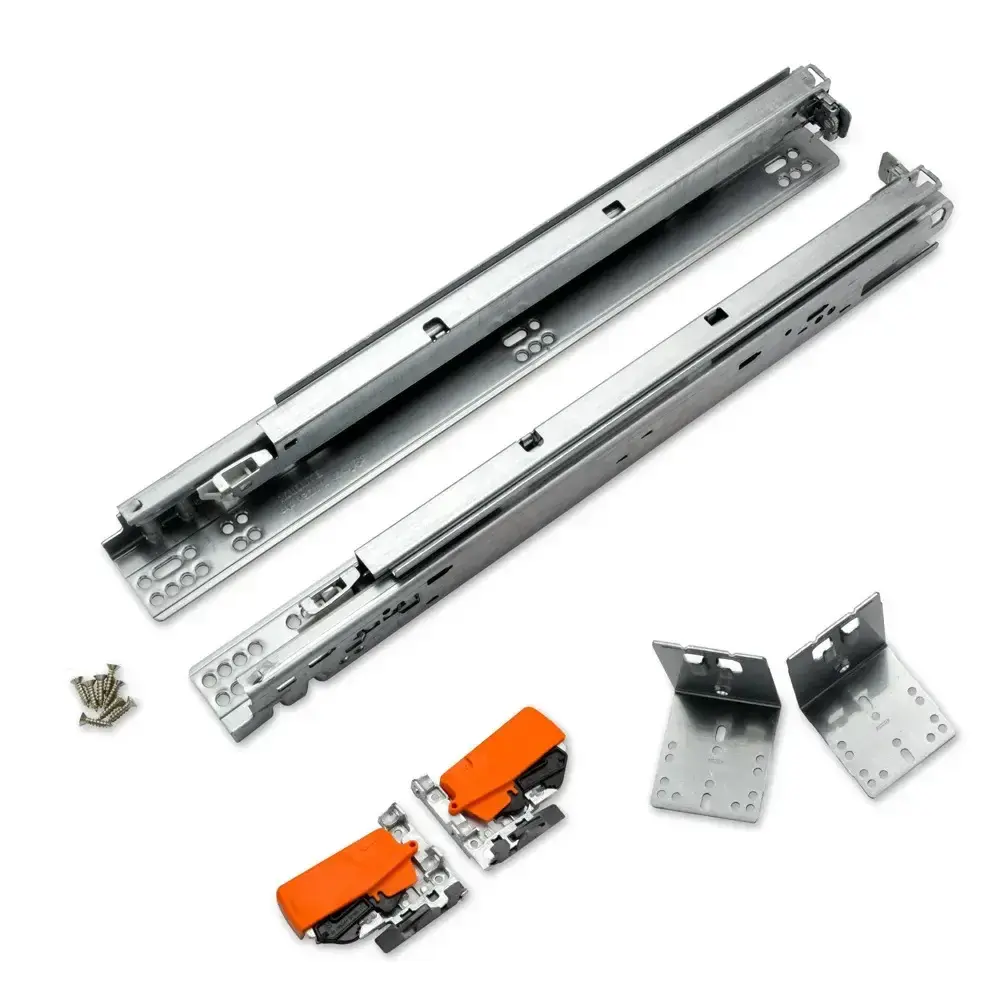

Kit includes (2) Slides, (2) Locking Devices, Installation Screws, (2) Rear Mounting Brackets (Optional)
-
Product Description
- BLUMOTION soft close functionality
- Full-extension concealed drawer slides
- Slides available in 9" to 21" drawer depths
- 100 lb static load capacity
- Two, Four, or Six-dimensional adjustment based on locking devices
- Works for 1/2" and 5/8" drawer side thickness
- Includes wood screws
- Rear mounting bracket optional
-
Drawer Slide Specifications
- Available in the following lengths: 9", 12", 15", 18", 21".
- Side Adjustment: Maximum of +/- 1/16" (1.5mm) left or right at both the front and rear locking devices.
- Height Adjustment: Drawer front adjustment up to 1/8" (3mm) without tools.
- Tilt Adjustment: Drawer back tilt adjustment up to 3/16" (5mm) without tools.
- Depth Adjustment:
- Runner allows for +/- 3/16" (4.5mm) adjustment via elongated mounting holes.
- Depth adjustable locking device offers an additional outward adjustment of + 3/32" (2.5mm).
- Minimum top clearance is 1/4" (6mm).
- Able to use with 1/2" or 5/8" drawer side thickness.
-
Locking Devices
- Provides height adjustment
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Minimum inside drawer width 4-7/8" (124mm)
- Allows for 1/8" (3mm) height adjustment.
- Provides height and lateral adjustment.
- Captive right device and self-aligning left device.
- Allows for additional 1/16" (1.5mm) lateral adjustment.
- Provides height, lateral, and depth adjustment.
- Captive right device and self-aligning left device.
- Allows for additional 3/32" (2.5mm) depth adjustment.
-
Rear Mounting Bracket
- Not included in standard kit.
- Typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
Blum Tandem Plus BLUMOTION Description
Designed to support heavy-duty use while delivering exceptionally smooth operation, these slides feature a robust tandem system that ensures stable, effortless gliding. The integrated BLUMOTION soft-close mechanism guarantees a controlled, whisper-quiet closure every time—ideal for both residential and commercial cabinetry. Upgrade your interiors with the dependable performance and sleek design that only Blum can offer.
Features & Options:
Ideal For
Soft-close drawer slides are the ideal choice for residential and commercial cabinetry that demands a high-end sliding solution.
Blum Tandem Plus BLUMOTION Specifications
Blum Tandem plus 563H Full Extension Concealed Undermount Slide with BLUMOTION.
Sizes
Adjustability
Drawer and Cabinet Requirements
Locking Devices
2-way Adjustable Clips
4-way Adjustable Clips
6-way Adjustable Clips (Default)
Rear Mounting Bracket
Blum Tandem Plus BLUMOTION Description
Designed to support heavy-duty use while delivering exceptionally smooth operation, these slides feature a robust tandem system that ensures stable, effortless gliding. The integrated BLUMOTION soft-close mechanism guarantees a controlled, whisper-quiet closure every time—ideal for both residential and commercial cabinetry. Upgrade your interiors with the dependable performance and sleek design that only Blum can offer.
Features & Options:
- BLUMOTION soft close functionality
- Full-extension concealed drawer slides
- Slides available in 9" to 21" drawer depths
- 100 lb static load capacity
- Two, Four, or Six-dimensional adjustment based on locking devices
- Works for 1/2" and 5/8" drawer side thickness
- Includes wood screws
- Rear mounting bracket optional
Ideal For
Soft-close drawer slides are the ideal choice for residential and commercial cabinetry that demands a high-end sliding solution.
Blum Tandem Plus BLUMOTION Specifications
Blum Tandem plus 563H Full Extension Concealed Undermount Slide with BLUMOTION.
Sizes
- Available in the following lengths: 9", 12", 15", 18", 21".
Adjustability
- Side Adjustment: Maximum of +/- 1/16" (1.5mm) left or right at both the front and rear locking devices.
- Height Adjustment: Drawer front adjustment up to 1/8" (3mm) without tools.
- Tilt Adjustment: Drawer back tilt adjustment up to 3/16" (5mm) without tools.
- Depth Adjustment:
- Runner allows for +/- 3/16" (4.5mm) adjustment via elongated mounting holes.
- Depth adjustable locking device offers an additional outward adjustment of + 3/32" (2.5mm).
Drawer and Cabinet Requirements
- Minimum top clearance is 1/4" (6mm).
- Able to use with 1/2" or 5/8" drawer side thickness.
Locking Devices
2-way Adjustable Clips
- Provides height adjustment
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Minimum inside drawer width 4-7/8" (124mm)
- Allows for 1/8" (3mm) height adjustment.
4-way Adjustable Clips
- Provides height and lateral adjustment.
- Captive right device and self-aligning left device.
- Allows for additional 1/16" (1.5mm) lateral adjustment.
6-way Adjustable Clips (Default)
- Provides height, lateral, and depth adjustment.
- Captive right device and self-aligning left device.
- Allows for additional 3/32" (2.5mm) depth adjustment.
Rear Mounting Bracket
- Not included in standard kit.
- Typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
Blum Tandem plus BLUMOTION Soft Close Drawer Slides FAQ
Are drawer slides shipped with my drawers?
No, we ship drawer slides separately from drawer boxes to avoid any potential shipping damage.
When do I need a rear mounting bracket?
Rear mounting brackets are typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
How do I measure for drawer slides?
The drawer slide size should be equal in length to your drawer box depth.
For detailed instructions, visit our Drawers Measuring Instructions page.
How to access full FAQ list?
For our full list of frequently asked questions, visit our knowledge base.
