Blum Movento with TIP-ON BLUMOTION Drawer Slides Kit
Experience unparalleled convenience and precision with the Blum Movento with TIP-ON BLUMOTION Drawer Slides Kit, featuring full-extension concealed runners integrated with touch-to-open and soft-close technology for effortless, silent drawer operation.

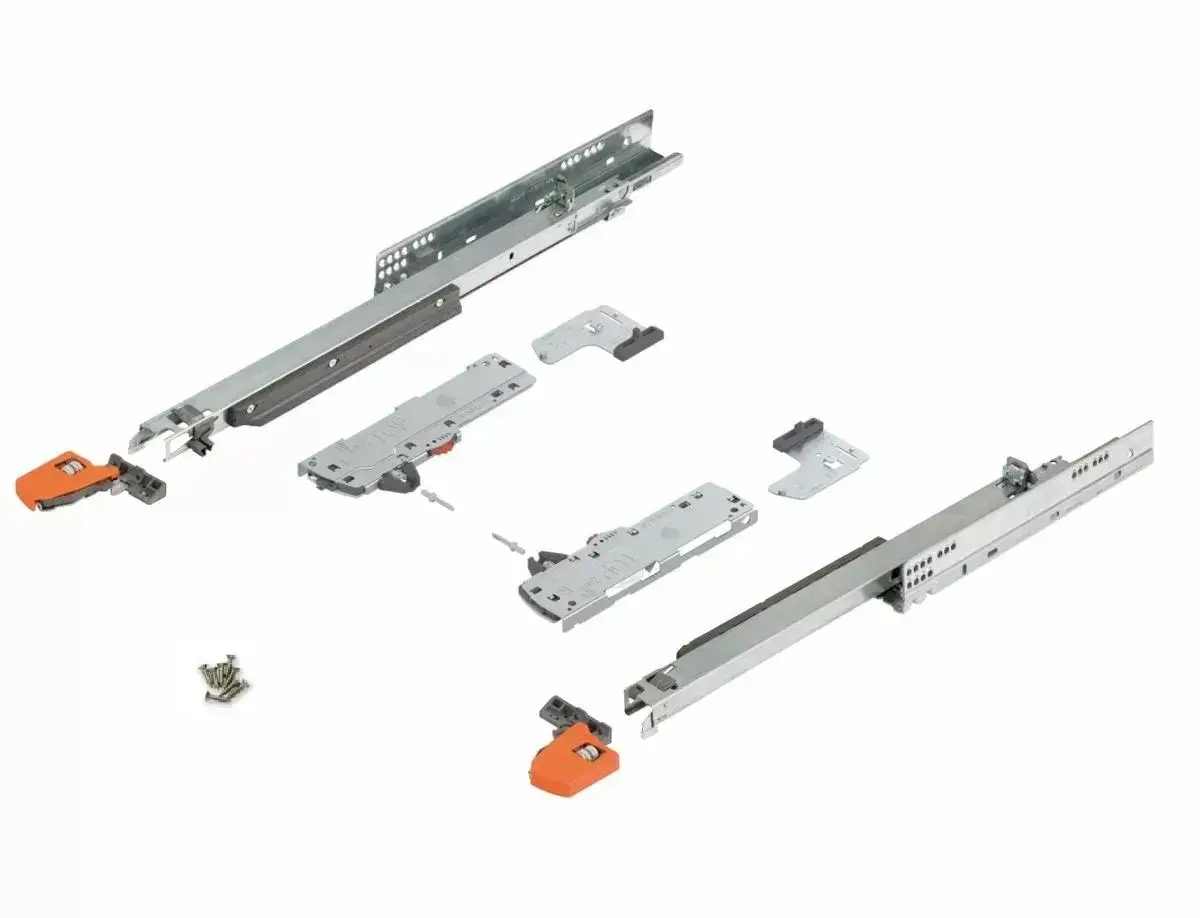

Kit includes (2) Slides, (2) Locking Devices, (2) Depth Adjustment Brackets, TIP-ON BLUMOTION Set, Installation Screws
-
Product Description
- Integrated BLUMOTION soft-close for controlled, silent closing.
- Full-extension concealed undermount design for maximum drawer access.
- TIP-ON technology enables push-to-open, touch-activated drawer opening.
- Available in standard duty (125 lb static load) and heavy duty (170 lb static load) models.
- Standard duty sizes available in 9" to 21" drawer depths; heavy duty sizes available in 18" to 30" drawer depths.
- Compatible with 1/2″ and 5/8″ drawer side thickness.
- Includes all necessary installation hardware (wood screws).
-
Drawer Slide Specifications
- Standard Duty: Available in the following lengths: 12", 15", 18", 21".
- Heavy Duty: Available in the following lengths: 18", 21", 24", 27", 30".
- Lateral Adjustment: Maximum of +/- 1/16" (1.5mm) left or right at both the front and rear locking devices.
- Height Adjustment: Drawer front adjustment up to 1/8" (3mm) without tools.
- Tilt Adjustment: Drawer back tilt adjustment up to 3/16" (5mm) without tools.
- Depth Adjustment:
- Runner allows for +/- 3/16" (4.5mm) adjustment via elongated mounting holes.
- Additional 1/16" (2mm) depth adjustment available with adjustment bracket.
- Minimum top clearance is 1/4" (6mm).
- Able to use with 1/2" or 5/8" drawer side thickness.
-
Locking Devices
- Provides lateral adjustment.
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Minimum inside drawer width 6-11/16" (170mm).
- Allows for additional 1/16" (1.5mm) lateral adjustment.
- Depth adjustment bracket available to provide tool-free adjustments, compatible with standard 2-way locking devices.
- Allows for 1/16" (2mm) depth adjustment.
- Depth Adjustment Brackets come standard in the Blum Movento with TIP-ON BLUMOTION Drawer Slides kit.
-
TIP-ON Mechanism
- Enables quick and reliable drawer release with a simple touch.
- Offers consistent mechanical operation without electrical components.
-
Rear Mounting Bracket
- Not included in standard kit.
- Typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
Blum Movento with TIP-ON Description
Engineered for robust, heavy-duty performance, the Blum Movento with TIP-ON BLUMOTION Drawer Slides Kit delivers a synchronized, feather-light glide and full-extension access—ensuring exceptional, whisper-quiet drawer closing with integrated BLUMOTION soft-close—while the TIP-ON system adds effortless, touch-to-open functionality for intuitive operation in both frameless and blocked-out face frame cabinetry.
Features & Options:
Ideal For
Choose the Movento with TIP-ON BLUMOTION Kit when you need both superior heavy-duty performance and hands-free, intuitive drawer operation.
Blum Movento with TIP-ON Specifications
Blum Tandem plus 763H Standard Duty & 769R Heavy Duty Full Extension Concealed Undermount Slide with BLUMOTION.
Sizes
Adjustability
Drawer and Cabinet Requirements
Locking Devices
Movento locking devices are only available in 2-way adjustable clips.
2-way Adjustable Clips
Depth Adjustment Bracket
TIP-ON Mechanism
The TIP-ON mechanism delivers a fully mechanical, touch-to-open solution for MOVENTO drawer systems, providing effortless, push-to-open functionality with a light touch on the drawer front—eliminating the need for external pulls while maintaining a sleek, handle-free design.
Touch -to-Open Functionality
Rear Mounting Bracket
Blum Movento with TIP-ON Description
Engineered for robust, heavy-duty performance, the Blum Movento with TIP-ON BLUMOTION Drawer Slides Kit delivers a synchronized, feather-light glide and full-extension access—ensuring exceptional, whisper-quiet drawer closing with integrated BLUMOTION soft-close—while the TIP-ON system adds effortless, touch-to-open functionality for intuitive operation in both frameless and blocked-out face frame cabinetry.
Features & Options:
- Integrated BLUMOTION soft-close for controlled, silent closing.
- Full-extension concealed undermount design for maximum drawer access.
- TIP-ON technology enables push-to-open, touch-activated drawer opening.
- Available in standard duty (125 lb static load) and heavy duty (170 lb static load) models.
- Standard duty sizes available in 9" to 21" drawer depths; heavy duty sizes available in 18" to 30" drawer depths.
- Compatible with 1/2″ and 5/8″ drawer side thickness.
- Includes all necessary installation hardware (wood screws).
Ideal For
Choose the Movento with TIP-ON BLUMOTION Kit when you need both superior heavy-duty performance and hands-free, intuitive drawer operation.
Blum Movento with TIP-ON Specifications
Blum Tandem plus 763H Standard Duty & 769R Heavy Duty Full Extension Concealed Undermount Slide with BLUMOTION.
Sizes
- Standard Duty: Available in the following lengths: 12", 15", 18", 21".
- Heavy Duty: Available in the following lengths: 18", 21", 24", 27", 30".
Adjustability
- Lateral Adjustment: Maximum of +/- 1/16" (1.5mm) left or right at both the front and rear locking devices.
- Height Adjustment: Drawer front adjustment up to 1/8" (3mm) without tools.
- Tilt Adjustment: Drawer back tilt adjustment up to 3/16" (5mm) without tools.
- Depth Adjustment:
- Runner allows for +/- 3/16" (4.5mm) adjustment via elongated mounting holes.
- Additional 1/16" (2mm) depth adjustment available with adjustment bracket.
Drawer and Cabinet Requirements
- Minimum top clearance is 1/4" (6mm).
- Able to use with 1/2" or 5/8" drawer side thickness.
Locking Devices
Movento locking devices are only available in 2-way adjustable clips.
2-way Adjustable Clips
- Provides lateral adjustment.
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Minimum inside drawer width 6-11/16" (170mm).
- Allows for additional 1/16" (1.5mm) lateral adjustment.
Depth Adjustment Bracket
- Depth adjustment bracket available to provide tool-free adjustments, compatible with standard 2-way locking devices.
- Allows for 1/16" (2mm) depth adjustment.
- Depth Adjustment Brackets come standard in the Blum Movento with TIP-ON BLUMOTION Drawer Slides kit.
TIP-ON Mechanism
The TIP-ON mechanism delivers a fully mechanical, touch-to-open solution for MOVENTO drawer systems, providing effortless, push-to-open functionality with a light touch on the drawer front—eliminating the need for external pulls while maintaining a sleek, handle-free design.
Touch -to-Open Functionality
- Enables quick and reliable drawer release with a simple touch.
- Offers consistent mechanical operation without electrical components.
Rear Mounting Bracket
- Not included in standard kit.
- Typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
Blum Movento with TIP-ON BLUMOTION Drawer Slides FAQ
Are drawer slides shipped with my drawers?
No, we ship drawer slides separately from drawer boxes to avoid any potential shipping damage.
When do I need a rear mounting bracket?
Rear mounting brackets are typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
How do I measure for drawer slides?
The drawer slide size should be equal in length to your drawer box depth.
For detailed instructions, visit our Drawers Measuring Instructions page.
How to access full FAQ list?
For our full list of frequently asked questions, visit our knowledge base.
How to Order Drawer Boxes & Drawer Slides
See how our process works from measuring to delivery to ensure your online ordering experience is as seamless as possible.
- 1. Measure
- 2. Request a Quote
- 3. Confirm Order
- 4. Track Order
- 5. Delivery
Step 1: Measure
First determine the appropriate drawer measurements.
Our drawer box order dimensions are based on the measurements for the actual drawers, not the cabinet openings.
To determine drawer box dimensions, deductions from the cabinet opening are required based on the drawer thickness and hardware pairing.
Step 2: Request a Quote
Visit our Drawer Box Order page to fill out the quote and order form. Enter your details and drawer box information.
Add drawer slides to your order and we will automatically match the sizes with your drawer sizes.
New customers will receive a quote first, regardless of selecting 'order'.
Step 3: Confirm Order
Approve your quote via email and provide payment securely.
You’ll receive an Order Acknowledgment once your order is confirmed.
Step 4: Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Step 5: Delivery
We carefully package your drawer boxes to prevent damage.
Local deliveries are handled by our in-house team, while national shipping is available via parcel or freight services.
Step 1: Measure
First determine the appropriate drawer measurements.
Our drawer box order dimensions are based on the measurements for the actual drawers, not the cabinet openings.
To determine drawer box dimensions, deductions from the cabinet opening are required based on the drawer thickness and hardware pairing.
Step 2: Request a Quote
Visit our Drawer Box Order page to fill out the quote and order form. Enter your details and drawer box information.
Add drawer slides to your order and we will automatically match the sizes with your drawer sizes.
New customers will receive a quote first, regardless of selecting 'order'.
Step 3: Confirm Order
Approve your quote via email and provide payment securely.
You’ll receive an Order Acknowledgment once your order is confirmed.
Step 4: Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Step 5: Delivery
We carefully package your drawer boxes to prevent damage.
Local deliveries are handled by our in-house team, while national shipping is available via parcel or freight services.
Ordering Heavy Duty Drawer Slides Online is Easy
Order your drawer box slides today using our easy online form. Provide your measurements, select your hardware type, and choose your delivery method. Enjoy hassle-free online ordering from Eagle Woodworking.
