Blum Movento Heavy Duty Drawer Slides Kit
Blum MOVENTO full extension undermount drawer slides deliver smooth, silent operation with integrated BLUMOTION soft-close and four-dimensional, tool-free adjustments for seamless access to deep, wide drawers that require a more robust drawer slide.

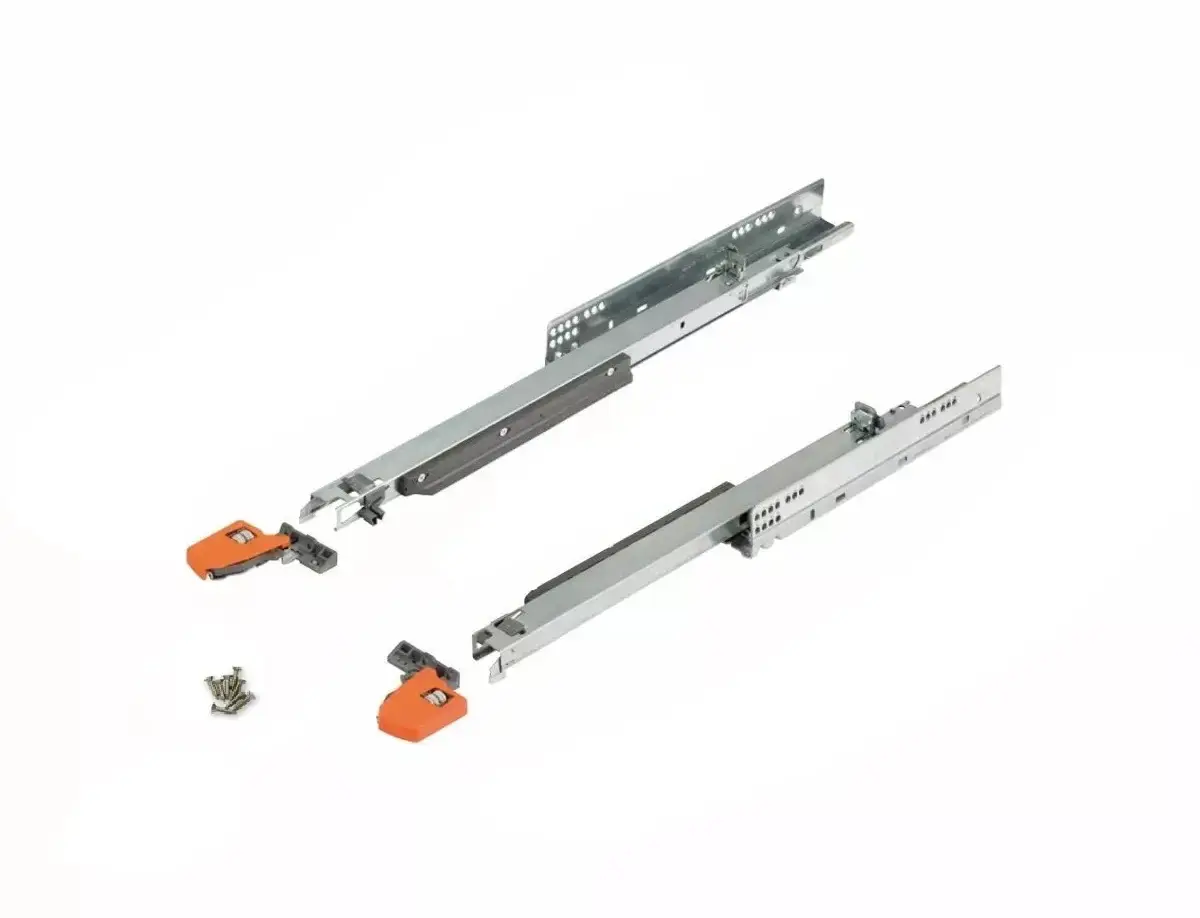

Kit includes (2) Slides, (2) Locking Devices, Installation Screws, (2) Depth Adjustment Brackets (Optional)
-
Product Description
- Integrated BLUMOTION soft-close functionality for silent, controlled closing.
- Full-extension concealed undermount design for maximum drawer access.
- Options for standard duty (125 lb static load) or heavy duty (170 lb static load) models.
- Standard duty sizes available in 9" to 21" drawer depths.
- Heavy duty sizes available in 18" to 30" drawer depth
- Compatible with 1/2″ and 5/8″ drawer side thickness.
- Includes necessary installation hardware (wood screws).
-
Drawer Slide Specifications
- Standard Duty: Available in the following lengths: 12", 15", 18", 21".
- Heavy Duty: Available in the following lengths: 18", 21", 24", 27", 30".
- Lateral Adjustment: Maximum of +/- 1/16" (1.5mm) left or right at both the front and rear locking devices.
- Height Adjustment: Drawer front adjustment up to 1/8" (3mm) without tools.
- Tilt Adjustment: Drawer back tilt adjustment up to 3/16" (5mm) without tools.
- Depth Adjustment:
- Runner allows for +/- 3/16" (4.5mm) adjustment via elongated mounting holes.
- Additional 1/16" (2mm) depth adjustment available with add-on adjustment bracket.
- Minimum top clearance is 1/4" (6mm).
- Able to use with 1/2" or 5/8" drawer side thickness.
-
Locking Devices
- Provides lateral adjustment.
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Minimum inside drawer width 6-11/16" (170mm).
- Allows for additional 1/16" (1.5mm) lateral adjustment.
- Depth adjustment bracket available to provide tool-free adjustments, compatible with standard 2-way locking devices.
- Allows for 1/16" (2mm) depth adjustment.
-
Rear Mounting Bracket
- Not included in standard kit.
- Typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
Blum Movento plus BLUMOTION Description
Engineered for robust, heavy-duty performance with a synchronized, feather-light glide, the Blum MOVENTO full-extension concealed drawer slides deliver exceptionally smooth operation even under demanding use. The integrated BLUMOTION soft-close mechanism ensures a controlled, whisper-quiet closure every time—providing effortless access to deep, wide drawers in both frameless and blocked-out face frame cabinetry.
Features & Options:
Ideal For
Opt for MOVENTO when you need maximum drawer access combined with superior heavy-duty performance.
Blum Movento plus BLUMOTION Specifications
Blum Tandem plus 763H Standard Duty & 769R Heavy Duty Full Extension Concealed Undermount Slide with BLUMOTION.
Sizes
Adjustability
Drawer and Cabinet Requirements
Locking Devices
Movento locking devices are only available in 2-way adjustable clips.
2-way Adjustable Clips (Default)
Add-on Depth Adjustment Bracket
Rear Mounting Bracket
Blum Movento plus BLUMOTION Description
Engineered for robust, heavy-duty performance with a synchronized, feather-light glide, the Blum MOVENTO full-extension concealed drawer slides deliver exceptionally smooth operation even under demanding use. The integrated BLUMOTION soft-close mechanism ensures a controlled, whisper-quiet closure every time—providing effortless access to deep, wide drawers in both frameless and blocked-out face frame cabinetry.
Features & Options:
- Integrated BLUMOTION soft-close functionality for silent, controlled closing.
- Full-extension concealed undermount design for maximum drawer access.
- Options for standard duty (125 lb static load) or heavy duty (170 lb static load) models.
- Standard duty sizes available in 9" to 21" drawer depths.
- Heavy duty sizes available in 18" to 30" drawer depth
- Compatible with 1/2″ and 5/8″ drawer side thickness.
- Includes necessary installation hardware (wood screws).
Ideal For
Opt for MOVENTO when you need maximum drawer access combined with superior heavy-duty performance.
Blum Movento plus BLUMOTION Specifications
Blum Tandem plus 763H Standard Duty & 769R Heavy Duty Full Extension Concealed Undermount Slide with BLUMOTION.
Sizes
- Standard Duty: Available in the following lengths: 12", 15", 18", 21".
- Heavy Duty: Available in the following lengths: 18", 21", 24", 27", 30".
Adjustability
- Lateral Adjustment: Maximum of +/- 1/16" (1.5mm) left or right at both the front and rear locking devices.
- Height Adjustment: Drawer front adjustment up to 1/8" (3mm) without tools.
- Tilt Adjustment: Drawer back tilt adjustment up to 3/16" (5mm) without tools.
- Depth Adjustment:
- Runner allows for +/- 3/16" (4.5mm) adjustment via elongated mounting holes.
- Additional 1/16" (2mm) depth adjustment available with add-on adjustment bracket.
Drawer and Cabinet Requirements
- Minimum top clearance is 1/4" (6mm).
- Able to use with 1/2" or 5/8" drawer side thickness.
Locking Devices
Movento locking devices are only available in 2-way adjustable clips.
2-way Adjustable Clips (Default)
- Provides lateral adjustment.
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Minimum inside drawer width 6-11/16" (170mm).
- Allows for additional 1/16" (1.5mm) lateral adjustment.
Add-on Depth Adjustment Bracket
- Depth adjustment bracket available to provide tool-free adjustments, compatible with standard 2-way locking devices.
- Allows for 1/16" (2mm) depth adjustment.
Rear Mounting Bracket
- Not included in standard kit.
- Typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
Blum Movento Full Extension Drawer Slides FAQ
Are drawer slides shipped with my drawers?
No, we ship drawer slides separately from drawer boxes to avoid any potential shipping damage.
When do I need a rear mounting bracket?
Rear mounting brackets are typically only required if installing drawers in a face frame cabinet in which the slides are spaced away from the cabinet sides and no blocking is added to the sides.
How do I measure for drawer slides?
The drawer slide size should be equal in length to your drawer box depth.
For detailed instructions, visit our Drawers Measuring Instructions page.
How to access full FAQ list?
For our full list of frequently asked questions, visit our knowledge base.
How to Order Drawer Boxes & Drawer Slides
See how our process works from measuring to delivery to ensure your online ordering experience is as seamless as possible.
- 1. Measure
- 2. Request a Quote
- 3. Confirm Order
- 4. Track Order
- 5. Delivery
Step 1: Measure
First determine the appropriate drawer measurements.
Our drawer box order dimensions are based on the measurements for the actual drawers, not the cabinet openings.
To determine drawer box dimensions, deductions from the cabinet opening are required based on the drawer thickness and hardware pairing.
Step 2: Request a Quote
Visit our Drawer Box Order page to fill out the quote and order form. Enter your details and drawer box information.
Add drawer slides to your order and we will automatically match the sizes with your drawer sizes.
New customers will receive a quote first, regardless of selecting 'order'.
Step 3: Confirm Order
Approve your quote via email and provide payment securely.
You’ll receive an Order Acknowledgment once your order is confirmed.
Step 4: Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Step 5: Delivery
We carefully package your drawer boxes to prevent damage.
Local deliveries are handled by our in-house team, while national shipping is available via parcel or freight services.
Step 1: Measure
First determine the appropriate drawer measurements.
Our drawer box order dimensions are based on the measurements for the actual drawers, not the cabinet openings.
To determine drawer box dimensions, deductions from the cabinet opening are required based on the drawer thickness and hardware pairing.
Step 2: Request a Quote
Visit our Drawer Box Order page to fill out the quote and order form. Enter your details and drawer box information.
Add drawer slides to your order and we will automatically match the sizes with your drawer sizes.
New customers will receive a quote first, regardless of selecting 'order'.
Step 3: Confirm Order
Approve your quote via email and provide payment securely.
You’ll receive an Order Acknowledgment once your order is confirmed.
Step 4: Track Order Progress
Eagle Woodworking sends updates on your order progress as it moves through our production stages: order acknowledged, order scheduled for production, order in production, order complete.
We also provide an online portal to view and manage all your quotes, orders, and invoices as well as make payments.
Step 5: Delivery
We carefully package your drawer boxes to prevent damage.
Local deliveries are handled by our in-house team, while national shipping is available via parcel or freight services.
Ordering Movento Drawer Slides Online is Easy
Order your drawer box slides today using our easy online form. Provide your measurements, select your hardware type, and choose your delivery method. Enjoy hassle-free online ordering from Eagle Woodworking.
