How to determine hinge boring and door hinges
At Eagle Woodworking we make adding cabinet door hinges to your order simple. You tell us your cabinet construction type and door overlay style and we will provide the recommended hinge boring setup and cabinet door hinges. When available, we offer both screw-on hinges and tool-free hinges (INSERTA).
We use the following table to determine hinge setups:
Face Frame Construction Type
| Door Overlay Style | Hinge Boring | Cabinet Door Hinges | Mounting Plate |
| Full Overlay (1-1/4" overlay) | A-03 (cup only 3mm tab (1/8")) | Blum Compact Clip - 100 degree, 1-1/4" Overlay, Screw-On | None |
| Partial Overlay (1/2" overlay) | A-03 (cup only 3mm tab (1/8")) | Blum Compact Clip - 105 degree, 1/2" Overlay, Screw-On | None |
| Inset (2mm reveal) | A-05 (cup only 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Inset, Screw-On | Blum 9mm mounting plate for frame cabinet |
| B-05 (cup & dowell 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Inset, INSERTA | Blum 9mm mounting plate for frame cabinet |
Frameless Construction Type
| Door Overlay Style | Hinge Boring | Cabinet Door Hinges | Mounting Plate |
| Full Overlay (5/8" overlay) | A-05 (cup only 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Full Overlay, Screw-On | Blum 0mm mounting plate |
| B-05 (cup & dowell 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Full Overlay, INSERTA | Blum 0mm mounting plate | |
| Partial Overlay (1/4" overlay) | A-05 (cup only 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Partial Overlay, Screw-On | Blum 0mm mounting plate |
| B-05 (cup & dowell 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Partial Overlay, INSERTA | Blum 0mm mounting plate | |
| Inset (2mm reveal) | A-05 (cup only 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Inset, Screw-On | Blum 0mm mounting plate |
| B-05 (cup & dowell 5mm tab (3/16")) | Blum CLIP top BLUMOTION - 110 degree, Inset, INSERTA | Blum 0mm mounting plate |
Our cabinet door hinge solutions only work for standard cabinet door applications. We do not offer cabinet door hinges for non-standard door positions such as blind corners, angled doors, or other special applications.

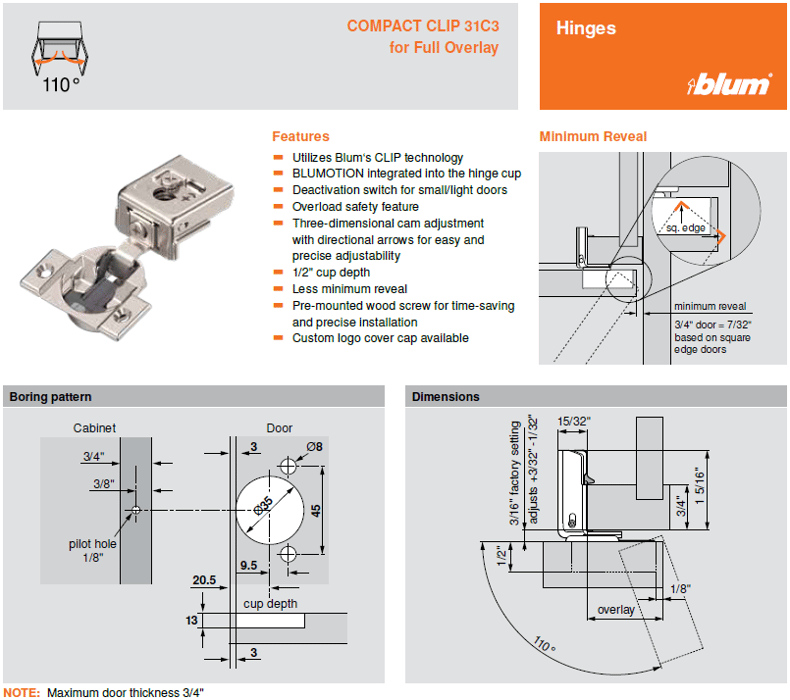

Face Frame - Full Overlay (1-1/4" Overlay)
 |
*Images courtesy of Blum Hardware

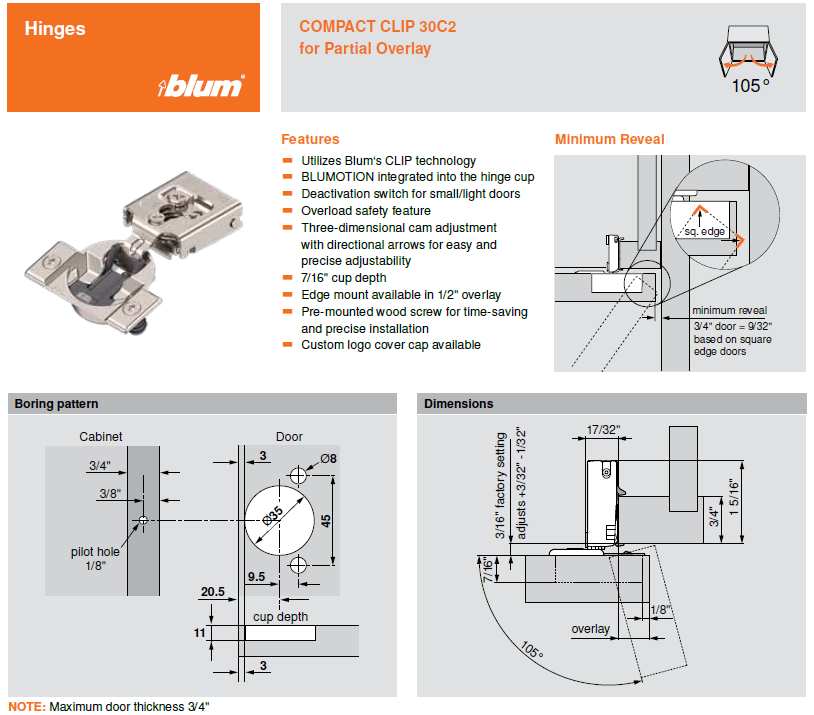

Face Frame - Partial Overlay (1/2" Overlay)
 |
*Images courtesy of Blum Hardware

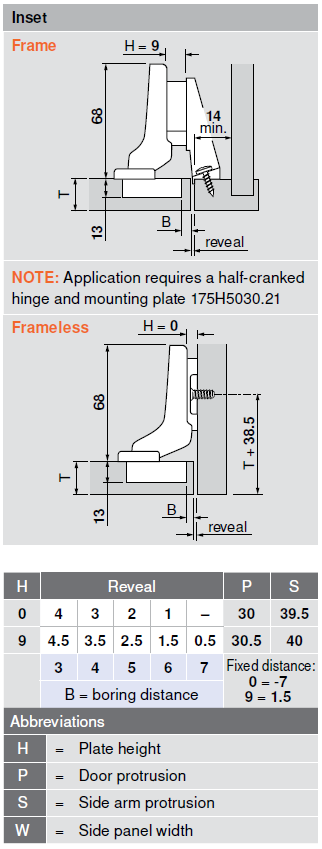

Face Frame & Frameless - Inset (2mm" Overlay)
 |
 |
*Images courtesy of Blum Hardware

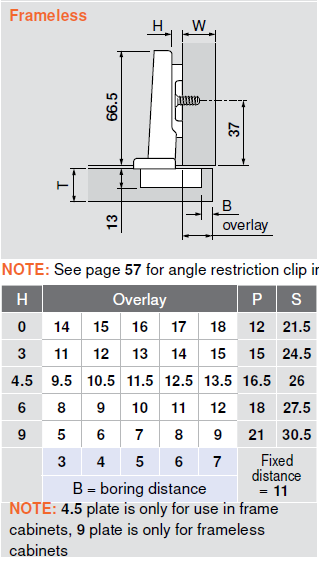

Frameless - Full Overlay (5/8" Overlay)
|
 |
*Images courtesy of Blum Hardware

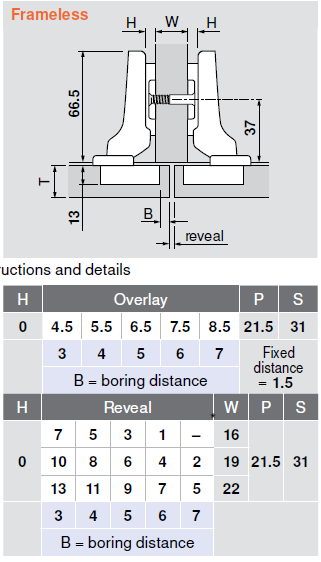

Frameless - Partial Overlay (1/4" Overlay)
 |
 |
*Images courtesy of Blum Hardware

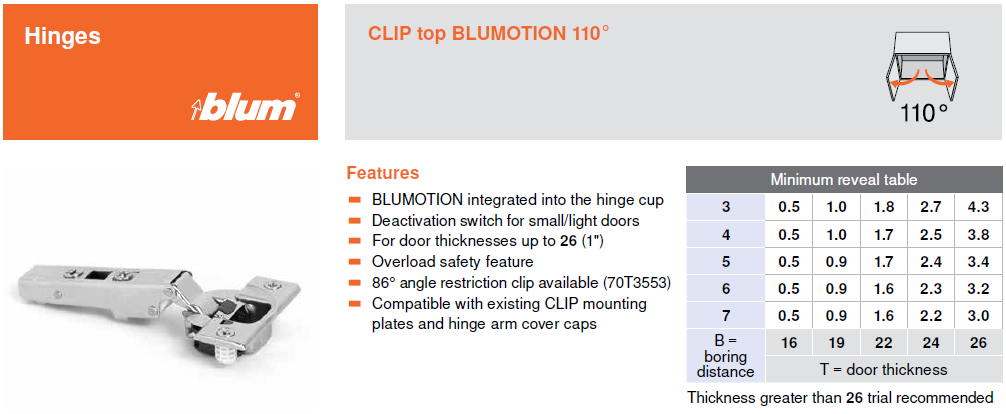

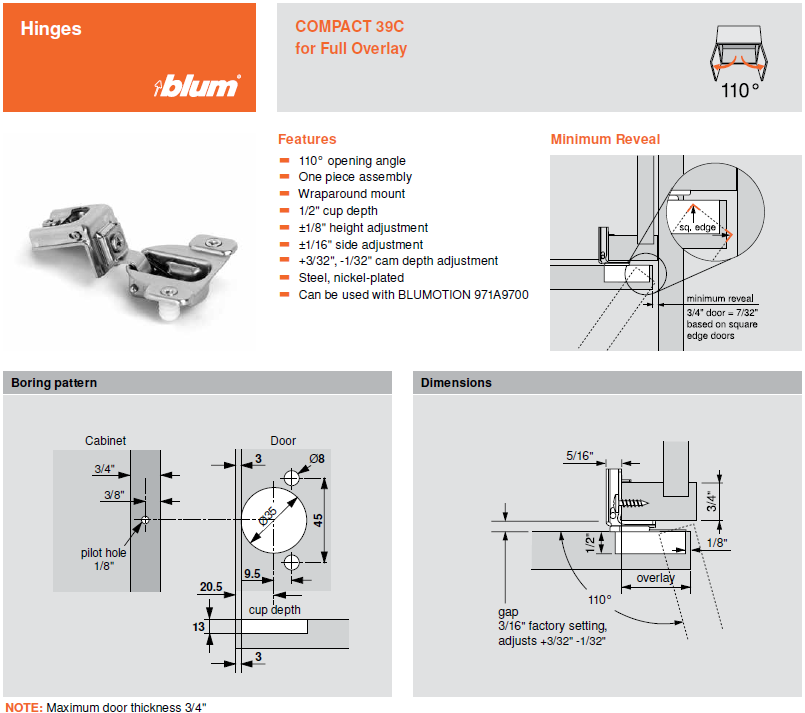

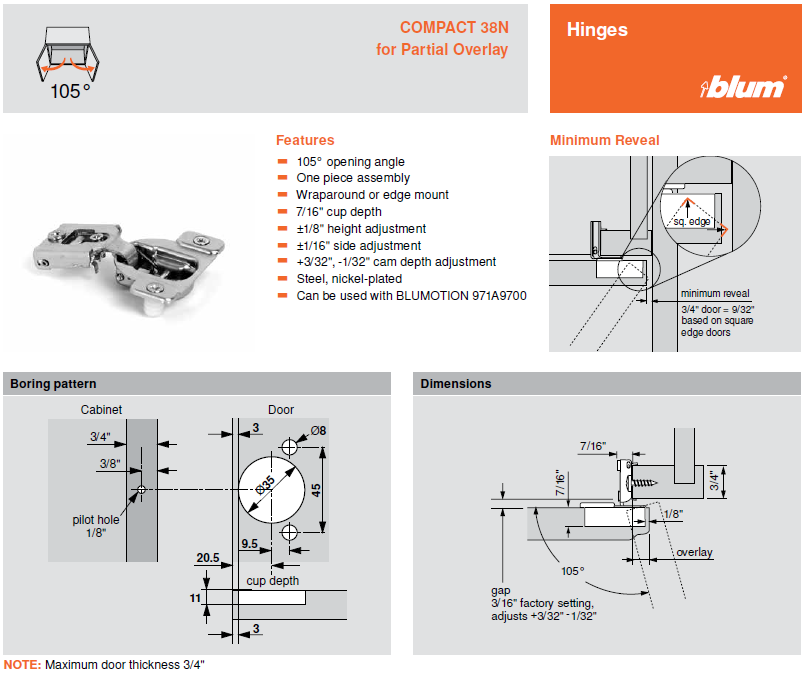

For more detailed information, view the Blum product guides below
CLIP top BLUMOTION Product Guide
